Buy Phoenix Contact ILC 2050 BI 2403160

All PLC & HMI Software

Official Distributor

By Phoenix Contact

SKU

MPN

ILC 2050 BI

Weight

0.325 kg

Series ILC

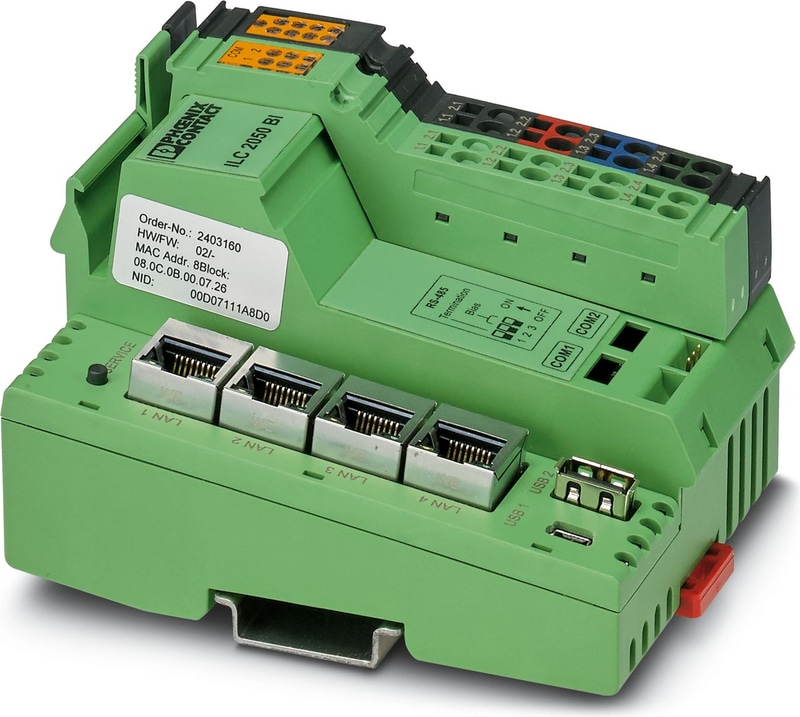

ILC 2050 BI - Controller

Modular Inline controller for automation applications in the fields of building technology, infrastructure, and energy technology. Equipped with two logically separated IP address interfaces each with 2 integrated Fast Ethernet ports. Configurable assignment of the Ethernet ports for the use of the spanning-tree protocol, daisy chain and redundant ring structures for maximum availability. Four LAN, two USB, and two RS-485 interfaces are integrated. The data point connections can be extended with up to 63 Inline I/O modules: digital and analog, function terminals for DALI, pulse counting, MBUS or serial interfaces.

Time-optimized engineering using the Niagara 4 framework
Support for all the main communication protocols used in building infrastructure automation
Planning, engineering, and visualization in the Java-based Niagara 4 framework
Easy extension of the Niagara 4 framework with self-programmed functions

Documents

Technical Document

Technical Specifications

Note on application

Only for industrial use

Product properties

Product family	Inline-Controller
Type	modular

Display

Diagnostics display

System properties

Processor	Arm®Cortex®-A8 1 GHz
Retentive data storage	2 GByte (eMMC)
RAM	1024 Mbyte DDR3 SDRAM

IEC 61131 runtime system

Program Memory	1 GByte (SRAM)
Data storage system	1.8 GByte (eMMC)

Function

Diagnostics display	no
Controller redundancy	no
Safety function	no

Functionality

Programming languages supported

Niagara Framework®

System requirements

Engineering tool

Emalytics

Supply

Supply Voltage	24 V DC
Supply Voltage Range	19.2 V DC ... 30 V DC
Max. current consumption	≤ 1.5 A
Typical current consumption	≤ 170 mA (at nominal voltage without local bus device)

Real-time clock

Realtime Clock	Yes
Description realtime clock	integrated (rechargeable battery buffered)

Potentials

Supply Voltage	24 V DC -15 % / +20 % (in accordance with EN 61131-2)
Supply Voltage Range	19.2 V DC ... 30 V DC

Inline connector

Connection Method	Spring-cage connection
Conductor cross section, rigid	0.08 mm² ... 1.5 mm²
Conductor cross section, flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	28 ... 16

Interfaces

Supported protocols	BACnet/IP
Supported protocols	BACnet MS/TP (only at COM1 and COM2)
Supported protocols	Modbus/TCP
Supported protocols	Modbus/RTU
Supported protocols	KNX IP
Supported protocols	DALI
Supported protocols	DALI-2
Supported protocols	LON IP
Supported protocols	EnOcean
Supported protocols	SMI
Supported protocols	MP-Bus
Supported protocols	SNMP
Supported protocols	M-Bus
Supported protocols	MQTT
Supported protocols	OPC UA
Supported protocols	Simple OpenADR
Supported protocols	LDAP
Supported protocols	SMS
Supported protocols	CSV
Supported protocols	oBIX
Supported protocols	Milestone Video Framework Interface
Web server	yes

Ethernet

Bus system	RJ45
Number of interfaces	4
Connection Method	RJ45 jack
Transmission Speed	10/100 Mbps
No. of channels	2
Bus system	RS-485
Number of interfaces	2

USB

Bus system	USB type A
Number of interfaces	1
Bus system	Mini-USB
Number of interfaces	1

microSD

Bus system	microSD
Number of interfaces	1 (Top)
Connection Method	microSD slot

Dimensions

Width	80 mm
Height	119.8 mm
Depth	71.5 mm

Material specifications

Color

green (RAL 6021)

Ambient conditions

Degree of Protection	IP20
Ambient Temperature (Operation)	-25 °C ... 55 °C (observe derating)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	0 % ... 75 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)	0 % ... 75 % (according to DIN EN 61131-2)
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 hPa ... 106 kPa (up to 3000 m above sea level)
GRP_Temperature class	T4
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37	Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity

Mounting

Mounting Type

DIN rail mounting
