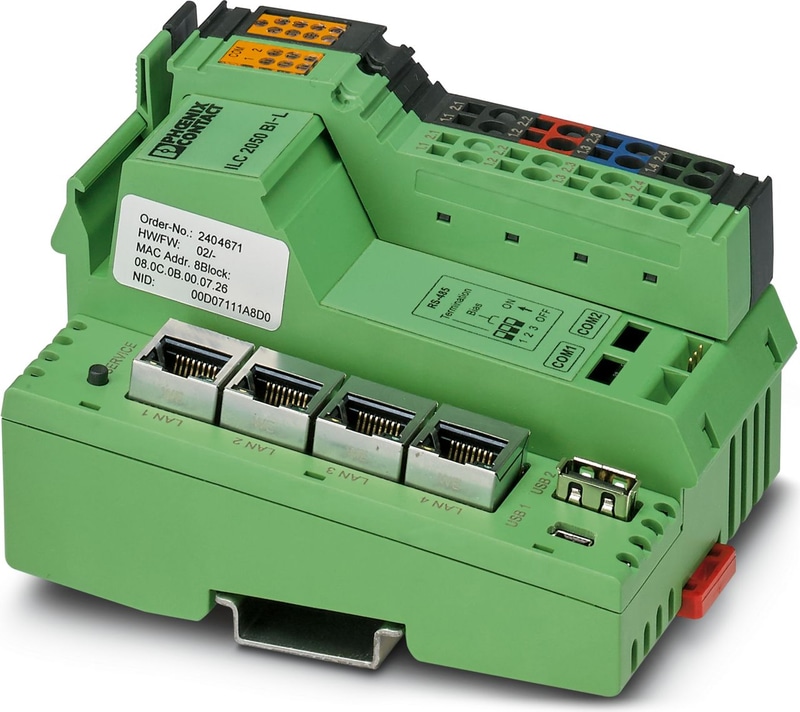

Similar figure
Official DistributorSKU
MPN
ILC 2050 BI-L
Weight
0.331 kg
Series ILC
ILC 2050 BI-L - Controller
Modular Inline controller for automation applications in the fields of building technology, infrastructure, and energy technology. Equipped with two logically separated IP address interfaces each with 2 integrated Fast Ethernet ports. Configurable assignment of the Ethernet ports for the use of the Spanning Tree Protocol, daisy chain and redundant ring structures for optimum availability. 4 LAN, 2 USB, and 2 RS-485 interfaces are integrated. It enables the direct connection of LonMark TP/FT-10 networks. The data point connections can be extended with up to 63 Inline I/O modules.
- Time-optimized engineering using the Niagara 4 framework
- Support for all the main communication protocols used in building infrastructure automation
- Direct connection of LonMark TP/FT-10 networks (in accordance with the CEA-709 standard)
- Planning, engineering, and visualization in the Java-based Niagara 4 framework
- Easy extension of the Niagara 4 framework with self-programmed functions
Technical Specifications
Product properties
| Product family | Inline-Controller |
| Type | modular |
System properties
| Processor | Arm® Cortex®-A8 1 GHz |
| Retentive data storage | 2 GByte (eMMC) |
| RAM | 1024 Mbyte DDR3 SDRAM |
IEC 61131 runtime system
| Program Memory | 1 GByte (SRAM) |
| Data storage system | 1.8 GByte (eMMC) |
Functionality
| Programming languages supported | Niagara Framework® |
System requirements
| Engineering tool | Emalytics |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
| Max. current consumption | ≤ 1.5 A |
| Typical current consumption | ≤ 170 mA (at nominal voltage without local bus device) |
Real-time clock
| Realtime Clock | Yes |
| Description realtime clock | integrated (rechargeable battery buffered) |
Potentials
| Supply Voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Interfaces
| Supported protocols | BACnet/IP |
| Supported protocols | BACnet MS/TP (only at COM1 and COM2) |
| Supported protocols | Modbus/TCP |
| Supported protocols | Modbus/RTU |
| Supported protocols | KNX IP |
| Supported protocols | DALI |
| Supported protocols | DALI-2 |
| Supported protocols | LON IP |
| Supported protocols | EnOcean |
| Supported protocols | SMI |
| Supported protocols | MP-Bus |
| Supported protocols | SNMP |
| Supported protocols | M-Bus |
| Supported protocols | MQTT |
| Supported protocols | OPC UA |
| Supported protocols | Simple OpenADR |
| Supported protocols | LDAP |
| Supported protocols | SMS |
| Supported protocols | CSV |
| Supported protocols | oBIX |
| Supported protocols | Milestone Video Framework Interface |
| Supported protocols | LonMark TP/FT |
Ethernet
| Bus system | RJ45 |
| Number of interfaces | 4 |
| Connection Method | RJ45 jack |
| Transmission Speed | 10/100 Mbps |
| No. of channels | 2 |
| Bus system | RS-485 |
| Number of interfaces | 2 |
USB
| Bus system | USB type A |
| Number of interfaces | 1 |
| Bus system | Mini-USB |
| Number of interfaces | 1 |
microSD
| Bus system | microSD |
| Number of interfaces | 1 (Top) |
| Connection Method | microSD slot |
Dimensions
| Width | 80 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C (observe derating) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 0 % ... 75 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 0 % ... 75 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| GRP_Temperature class | T4 |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity |
Mounting
| Mounting Type | DIN rail mounting |
