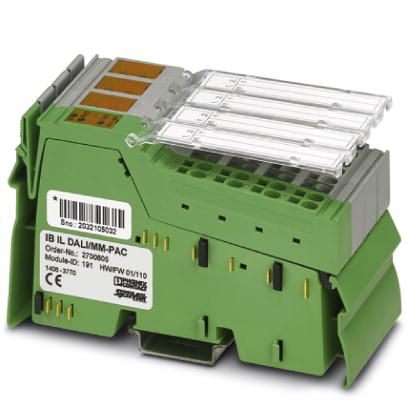

Inline function terminal - IB IL DALI/MM-PAC
Inline, DALI master, Multi-master-capable, integrated DALI power supply unit, safe electrical isolation, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields
- Suitable for both single and multi-master operation
- DALI master with integrated DALI bus supply
- Sends and receives 2 and 3-byte DALI commands
- DALI supply can be switched off
- Safe electrical isolation of the DALI bus
- DALI bus protected against unintentional connection of mains voltage (up to 250 V AC)
- Communication via process data
Technical Specifications
Dimensions
| Width | 48.8 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of Protection | IP20 |
Connection data
| Designation | Inline connector |
| Connection Method | Spring-cage connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Interfaces
| Designation | Inline local bus |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kbps |
| Designation | DALI |
| Connection Method | Inline connector |
| Supply Voltage | typ. 15 V DC (Bus voltage) |
| Current carrying capacity | max. 220 mA (Bus load) |
| Output current with short-circuit | max. 250 mA |
| Transmission Speed | 1200 bps |
| Type of protection | Bus protected up to 250 V AC, maximum |
General
| Mounting Type | DIN rail |
| Net weight | 180 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Yes No I/O error; DALI-specific error at application level |
Inline potentials
| Designation | Communications power (UL) |
| Supply Voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | max. 75 mA |
| Designation | Main circuit supply (UM) |
| Supply Voltage | 24 V DC (via voltage jumper) |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 230 mA |
| Power consumption | 3.5 W (The amount of power dissipation is heavily dependent on the bus activity, which is only influenced by the terminal itself to a limited extent. The maximum power dissipation is reached when other devices occupy the DALI bus with minimum pauses and the terminal itself does not transmit, and at the same time the DALI current of 220 mA is used in full.) |
Electrical isolation
| Test section | 7.5 V supply (bus logic)/24 V supply (I/O), and functional ground (FE) 500 V AC 50 Hz 1 min. |
| Test section | 7.5 V supply (bus logic)/DALI bus 2500 V AC 50 Hz 1 min. |
| Test section | 7.5 V supply (bus logic)/DALI bus (routine test) 1200 V AC 50 Hz 1 min. |
| Test section | 24 V supply (I/O)/DALI bus 2500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (I/O)/DALI bus (routine test) 1200 V AC 50 Hz 1 min. |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
