Official DistributorSKU
MPN
ILC 200 IB-PAC
Weight
0.536 kg
This product is Not Cancellable/Not Returnable
Series ILC

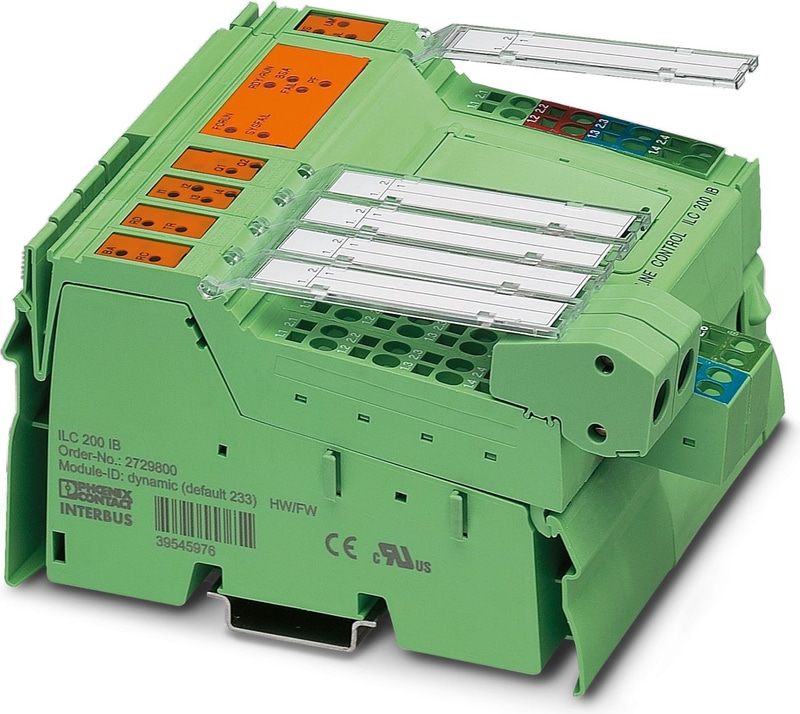

ILC 200 IB-PAC - Controller
Inline controller, complete with accessories (connector and labeling field). The controller is installed instead of a standard Inline bus coupler. It connects the station to the higher-level INTERBUS network in the same way as a bus coupler
- Fast inputs for interrupt processing, event counting, and period measurement
- 24 V high-speed outputs for pulse width modulation
Technical Specifications
Product properties
| Product family | Inline |
| Type | Inline format with alignable I/Os |
Display
| Diagnostics display | No |
System properties
| Retentive data storage | 8 kByte (NVRAM) |
IEC 61131 runtime system
| Program Memory | typ. 384 kByte (32 K instructions (IL)) |
| Data storage system | 330 kByte |
| Number of control tasks | 8 |
INTERBUS-Master
| Amount of Process Data | max. 4096 bit (INTERBUS-Master) |
| Number of parameter data | max. 8 Byte (configurable) |
| Number of supported devices | max. 512 |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 62 |
| Number of supported branch terminals with remote bus branch | max. 15 |
Function
| Diagnostics display | No |
| Controller redundancy | No |
Local diagnostics
| Designation | BA, RC, RD, LD |
| Monitored function | INTERBUS |
| Optical representation | Status display via LED |
Module
| ID code (dec.) | 233 |
| ID code (hex) | E9 |
System requirements
| Engineering tool | PC Worx |
| Diagnostics tool | DIAG+ from version 1.14 |
Electrical properties
| Local diagnostics | BA, RC, RD, LD INTERBUS Status display via LED |
| Local diagnostics | FCRUN, SYSFAIL, RDY/RUN, BSA, FAIL, PF IEC 61131 runtime system Status display via LED |
| Local diagnostics | UL, UM, US Power supply Status display via LED |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 3.25 W |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
| Power supply connection | 8-pos. Inline connector |
| Max. total permissible current consumption of all I/O terminal blocks | Communications power (7,5 V DC) ≤ 2 A DC |
| Max. total permissible current consumption of all I/O terminal blocks | Analog supply (24 V DC) ≤ 0.5 A |
| Residual ripple | ±5 % |
| Typical current consumption | 153 mA (no local bus device connected during idling, bus inactive) |
Potentials
| Supply Voltage | 7.5 V DC ±5 % |
| Supply Voltage | 24 V DC -15 % / +20 % |
| Supply Voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Supply Voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current draw | max. 2 A |
Digital:
| Input name | Digital inputs |
| Description of the input | Interrupt input, fast counter, pulse generator |
| Number of Inputs | 4 |
| Connection Method | Inline potential distributor |
| Connection technology | 2-, 3-, 4-conductor |
| Input Voltage | 2 x 24 V DC + 2 x 5/24 V DC |
| Typical input current per channel | 40 mA |
| Typical response time | < 1 ms |
Counter:
| Number of Inputs | 4 |
| Input Frequency | 40 kHz |
Digital:
| Output name | Digital outputs |
| Connection Method | Spring-cage connection |
| Connection technology | 2-, 3-, 4-conductor |
| Number of Outputs | 2 |
| Output Voltage | 24 V DC |
| Maximum Output Current per channel | 500 mA |
Pulse direction
| Number of pulse direction outputs | 2 |
| Limit frequency | 20 kHz |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
INTERBUS local bus (master)
| Number of interfaces | 1 |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kBaud / 2 MBaud (can be switched) |
Higher-level INTERBUS remote bus (slave)
| Number of interfaces | 1 |
| Connection Method | Inline shield connector |
| Transmission Speed | 500 kBaud |
| No. of channels | 1 |
Parameterization/operation/diagnostics
| Bus system | RS-232 |
| Number of interfaces | 1 |
| Connection Method | 6-pos. MINI DIN socket (PS/2) |
| Transmission Speed | 19200 Baud |
| Transmission physics | Copper |
Dimensions
| Width | 109.8 mm |
| Height | 140.5 mm |
| Depth | 71.5 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Permissible humidity (operation) | 5 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 85 % (non-condensing) |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (Operation) | 2g, criterion 1 according to IEC 60068-2-6 |
| Air pressure (operation) | 70 kPa ... 108 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Mounting
| Mounting Type | DIN rail mounting |
