PT 4-TWIN BN

Weight

0.011 kg

Series PT

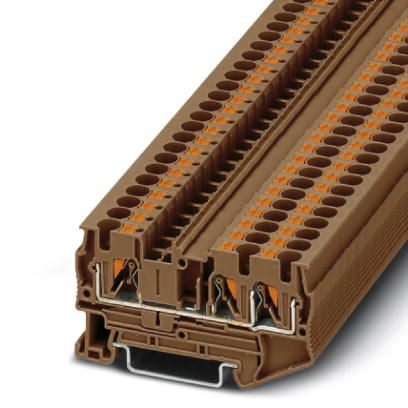

Feed-through terminal block - PT 4-TWIN BN

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, 1 level, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: brown

The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications

Technical Specifications

General

Number of rows	1
Number of Connections	3
Potentials	1
Nominal cross section	4 mm²
Color	brown
Insulating material	PA
Flammability rating according to UL 94	V0
Area of application	Railway industry
Area of application	Machine building
Area of application	Plant engineering
Area of application	Process industry
Mounting Type	NS 35/7,5
Rated surge voltage	8 kV
Degree of pollution	3
Overvoltage category	III
Insulating material group	I
Maximum power dissipation for nominal condition	1.02 W
Maximum Load Current	36 A (with 6 mm² conductor cross section, rigid)
Nominal current I_N	32 A
Nominal voltage U_N	800 V
Open side panel	Yes

Dimensions

Width	6.2 mm
End cover width	2.2 mm
Length	66.5 mm
Height NS 35/7,5	36.5 mm
Height NS 35/15	44 mm

Connection data

Connection	1 level
Connection Method	Push-in connection
Stripping length	10 mm ... 12 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	6 mm²
Conductor cross section AWG min.	24
Conductor cross section AWG max.	10
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	6 mm²
Min. AWG conductor cross section, flexible	24
Max. AWG conductor cross section, flexible	12
Conductor cross section flexible, with ferrule without plastic sleeve min.	0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.	4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.	0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.	4 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum	0.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum	1 mm²
Connection cross sections directly pluggable	0.5 mm² 6 mm²
Conductor cross section solid min.	0.5 mm²
Conductor cross section solid max.	6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.	0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.	4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.	0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.	4 mm²
Internal cylindrical gage	A4

Ambient conditions

Operating Temperature	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C ()

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Environmental Product Compliance

China RoHS	Environmentally friendly use period: unlimited = EFUP-e
China RoHS	No hazardous substances above threshold values

Accessories

3208977
3208977 - End cover, depth: 29 mm, width: 2.2 mm, height: 66.5 mm, color: gray
3030789
3030789 - Partition plate, depth: 39 mm, width: 2 mm, height: 75.2 mm, color: gray
1204517
1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
0810588
0810588 - Group marker label, snaps onto terminal center for screw, spring-cage and quick connection terminal blocks, labeled with a 25 x 12 mm label or manually with the B-STIFT, in the foot part with ZB 5
0809298
0809298 - Group marking label, snaps onto terminal center for screw, spring-cage and quick connection terminal blocks, labeled with ESL 26x6 mm or EST 25x6 mm, in the foot part with Zack marker strip, length: 29 mm
0828282
0828282 - Marker adapter, 300 mm in length, for manual cutting, can be engaged in a flat marker groove, for ZB ..., UC-TM ... or UCT-TM ...
3208090
3208090 - Operating decal for the push-in Technology
1207608
1207608 - Actuation tool, for all 2.5 mm2 - 4.0 mm2 spring-cages
1029563
1029563 -
1072355
1072355 - End cover, depth: 29 mm, width: 2.2 mm, height: 66.5 mm, color: blue
1080116
1080116 - End cover, width: 2.2 mm, color: orange
3030336
3030336 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
3030242
3030242 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
3030255
3030255 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
3030349
3030349 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
1008238
1008238 - Plug-in bridge, One side not fully isolated, pitch: 6.2 mm, number of positions: 6, color: red
3030271
3030271 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
3030365
3030365 - Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: red
3214356
3214356 - Reducing bridge, pitch: 6.7 mm, number of positions: 2, length: 23 mm, color: red
3033715
3033715 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
3001594
3001594 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
3001595
3001595 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
3001596
3001596 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
3033716
3033716 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
3033812
3033812 - Short-circuit connector, pitch: 6.2 mm, number of positions: 2, color: red
3036932
3036932 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: blue
3036945
3036945 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: blue
3036958
3036958 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: blue
3036961
3036961 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: blue
3032198
3032198 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: blue
3032208
3032208 - Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: blue
3032211
3032211 - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: blue
0801733
0801733 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
0801681 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
1204119 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
1204122 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
0801704 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
1206421 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
1206434 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
0801762 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
1206560 - DIN rail end piece, for DIN rail NS 35/7.5
1201730
1201730 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
1201714 - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
0806602 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
1204135 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
1201756 - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
1206599 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
1206586 - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
1201895 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
1206573 - DIN rail end piece, for DIN rail NS 35/15
1201798
1201798 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
1051003
1051003 -
0824992
Zack marker strip - ZB 6 CUS
1051016
1051016 -
1051032
1051032 -
1051414
1051414 -
1051430
1051430 -
0818085
0818085 -
0824589
Marker for terminal blocks - UC-TM 6 CUS
0828736
0828736 -
0808710
0808710 -
0818140
0818140 -
0828746
0828746 -
0808749
0808749 -
0808765
0808765 -
0810834
0810834 -
0810876
0810876 -
0201744
0201744 - Test plug, with solder connection up to 1 mm2 conductor cross section, number of positions: 1, color: gray
0201663
0201663 - Insulating sleeve, color: white
0201676
0201676 - Insulating sleeve, color: red
0201689
0201689 - Insulating sleeve, color: blue
0201692
0201692 - Insulating sleeve, color: yellow
0201702
0201702 - Insulating sleeve, color: green
0201728
0201728 - Insulating sleeve, color: gray
0201731
0201731 - Insulating sleeve, color: black
3002885
3002885 - Insulating sleeve, color: gray
3002898
3002898 - Insulating sleeve, color: black
3035975
3035975 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035974
3035974 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035977
3035977 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035976
3035976 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035978
3035978 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035980
3035980 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035982
3035982 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035979
3035979 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035981
3035981 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035983
3035983 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3030996
3030996 - Test plug, Modular test plug, number of positions: 1, color: red
3038736
3038736 - Test plug, number of positions: 1, color: red
0816498
0816498 -
0828295
0828295 -
0829255
0829255 -
3022218
3022218 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
3022276 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
0800886 - End clamp, width: 9.5 mm, color: gray
2908262
2908262 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
2909909
2909909 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
2909903
2909903 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
2908261
2908261 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
2909904
2909904 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
2909906
2909906 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
2909908
2909908 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
2909902
2909902 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
2909910
2909910 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
1135752
1135752 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135749
1135749 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135753
1135753 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135745
1135745 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135740
1135740 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135751
1135751 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
1135734
1135734 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.

Why Proax for Phoenix Contact 3211254?

Proax is an authorized distributor of Phoenix Contact 3211254 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Additional Information

Pack Size

Recommended

3211255
3211255 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
3211775
3211775 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue
1080103
1080103 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green
1080104
1080104 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: orange
3211780
3211780 - Ground terminal, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
3212200
3212200 - Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors.Current and voltage are determined by the plug used., nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
3212202
3212202 - Ground terminal, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: green-yellow
3212201
3212201 - Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors.Current and voltage are determined by the plug used., nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: blue
3211771
3211771 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3211922
3211922 - Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
3211797
3211797 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3211991
3211991 - Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors.Current and voltage are determined by the plug used., nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
3211999
3211999 - Ground terminal, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: green-yellow
3212000
3212000 - Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors.Current and voltage are determined by the plug used., nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in / plug connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: blue
3211919
3211919 - Component terminal block, with integrated diode 1N5408, nom. voltage: 800 V, nominal current: 1.5 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3211921
3211921 - Component terminal block, with integrated diode 1N5408, nom. voltage: 800 V, nominal current: 1.5 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3211809
3211809 - Ground terminal, number of connections: 4, connection method: Push-in connection, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
3211802
3211802 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue
1110405
1110405 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: orange
1067752
1067752 - Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, color: black

Sold in quantities of 50

Available for order

Phoenix Contact Availability
