1592777
Official DistributorSKU
PHX1592777
MPN
RC-0000000AD00
Weight
0.129 kg

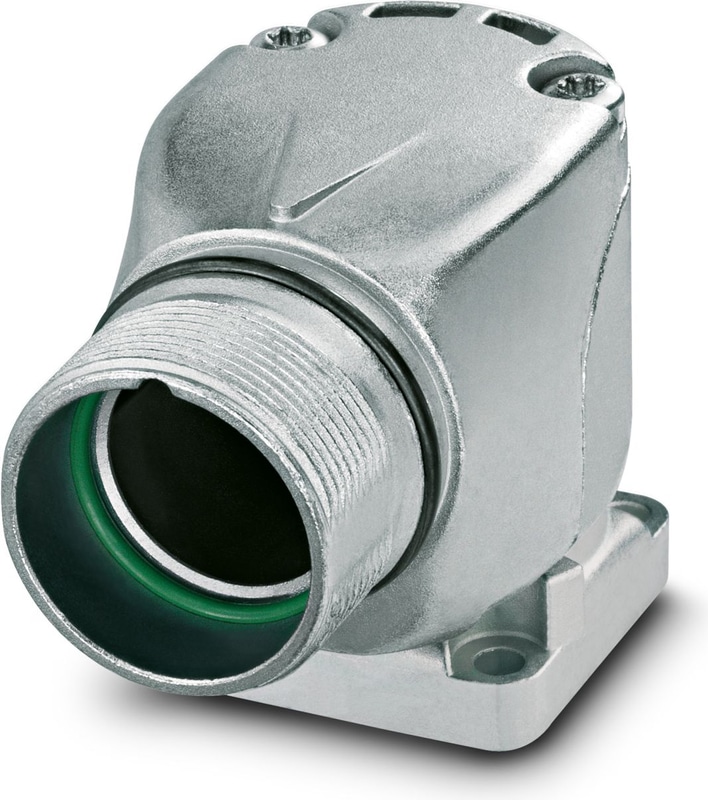

RC-0000000AD00 - Panel mounting base
Panel mounting base, series: RC, angled rotatable, Screw locking mechanism, M23, Axial O-ring, 4x Ø 3.2, shielded: yes
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Material specifications
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | angled rotatable |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Mounting
| Mounting | 4x Ø 3.2 |
Why Proax for Phoenix Contact 1592777?
Proax is an authorized distributor of Phoenix Contact 1592777 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
