1613405
Official DistributorSKU
PHX1613405
MPN
RC-0000000QBEP
Weight
0.136 kg

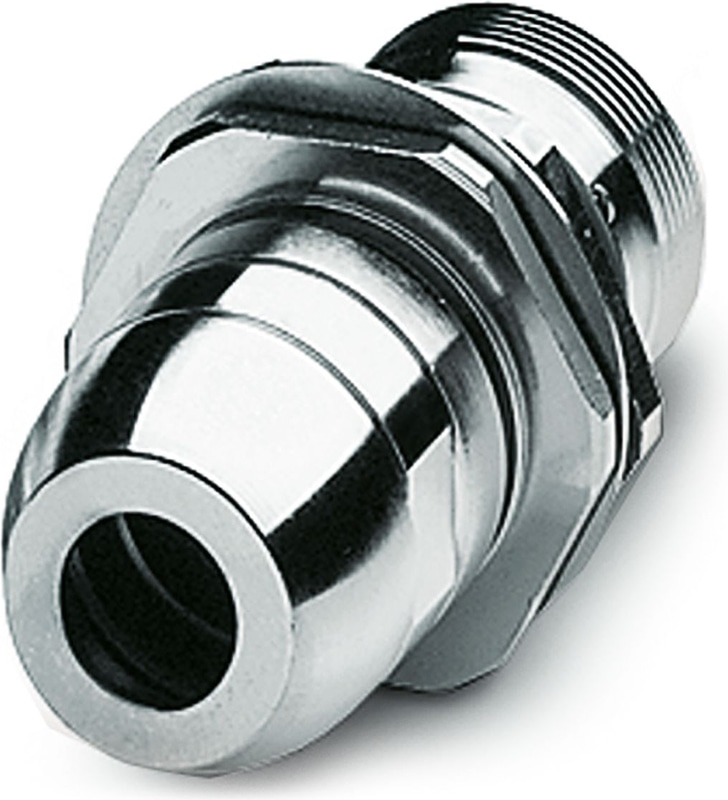

RC-0000000QBEP - Rear panel feed-through
Rear panel feed-through, straight, Screw locking mechanism, M23, Central fixing, shielded: yes, panel thickness min.: 0.8 mm, degree of protection: IP67, cable diameter range: 6 mm ... 10 mm, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1242736
Technical Specifications
Product properties
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Dimensions
| Panel Thickness | 0.8 mm ... 6.5 mm |
Connector
| Type | straight |
Cable/line
| External Cable Diameter | 6 mm ... 10 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Altitude | 3000 m |
Mounting
| Mounting | Central fixing |
Why Proax for Phoenix Contact 1613405?
Proax is an authorized distributor of Phoenix Contact 1613405 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
