1592781
Official DistributorSKU
PHX1592781
MPN
RC-0000000B2FZ
Weight
0.07 kg

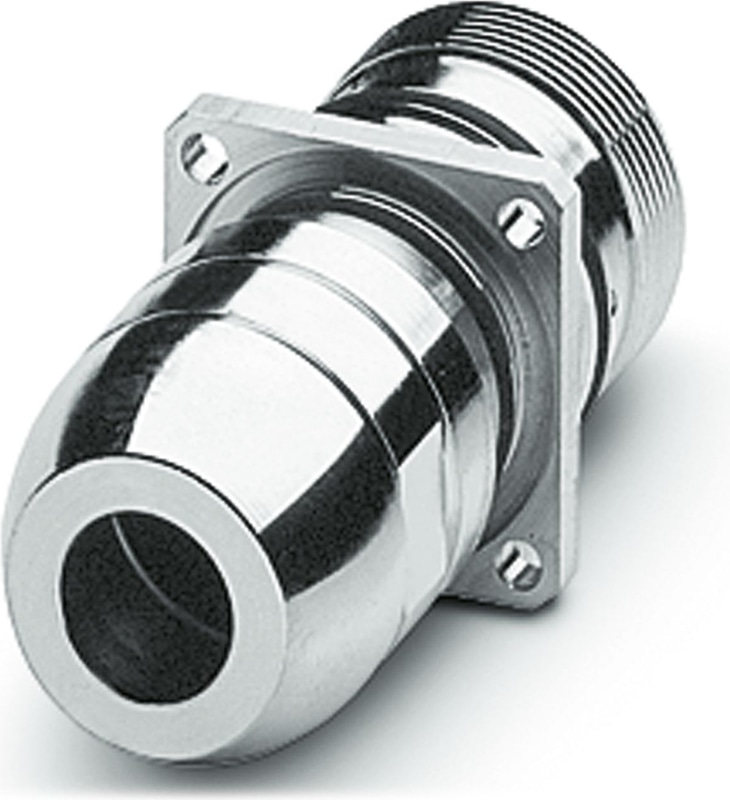

RC-0000000B2FZ - Front panel feed-through
Front panel feed-through, series: RC, straight, Screw locking mechanism, M23, Radial O-ring, 4x Ø2,7, shielded: yes, panel thickness min.: 3 mm, panel thickness max.: 7 mm, cable diameter range: 2 mm ... 10.5 mm, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240279
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Connection profile | 12 |
| Shielded | yes |
| Thread type | M23 |
Connection data
| Connection Method | Crimp connection |
Dimensions
| Panel Thickness | 3 mm ... 7 mm |
Material specifications
| Seal material | FPM or NBR or EPDM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | straight |
Cable/line
| External Cable Diameter | 2 mm ... 10.5 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Mounting
| Mounting | 4x Ø2,7 |
Why Proax for Phoenix Contact 1592781?
Proax is an authorized distributor of Phoenix Contact 1592781 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
