1592574
SKU
PHX1592574
MPN
RC-00000002200
Weight
0.027 kg
This product is Not Cancellable/Not Returnable

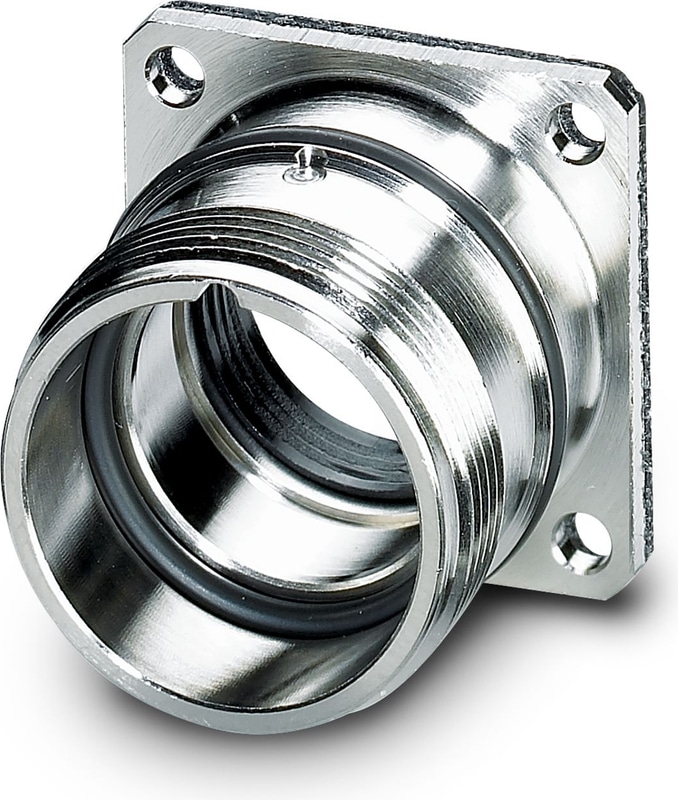

RC-00000002200 - Panel mounting base
Panel mounting base, series: RC, straight, Screw locking mechanism, M23, Flat gasket, 4x Ø2,7, shielded: yes, flange dimensions: 25 mm x 25 mm, panel thickness min.: 1 mm, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240228
Technical Specifications
Product properties
Series | RC |
Application | Signal |
Shielded | yes |
Thread type | M23 |
Dimensions
Panel Thickness | > 1 mm |
Housing
Flange dimensions | 25 mm x 25 mm |
Material specifications
Housing Material | Metal |
Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
Gasket and O-ring material | FPM |
Connector
Type | straight |
Ambient conditions
Degree of Protection | IP67 |
Ambient Temperature (Operation) | -20 °C ... 125 °C |
Altitude | 2000 m |
Mounting
Mounting | 4x Ø2,7 |
Why Proax for Phoenix Contact 1592574?
Proax is an authorized distributor of Phoenix Contact 1592574 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size | 1 |
