1592680
Official DistributorSKU
PHX1592680
MPN
RC-000000080FZ
Weight
0.066 kg

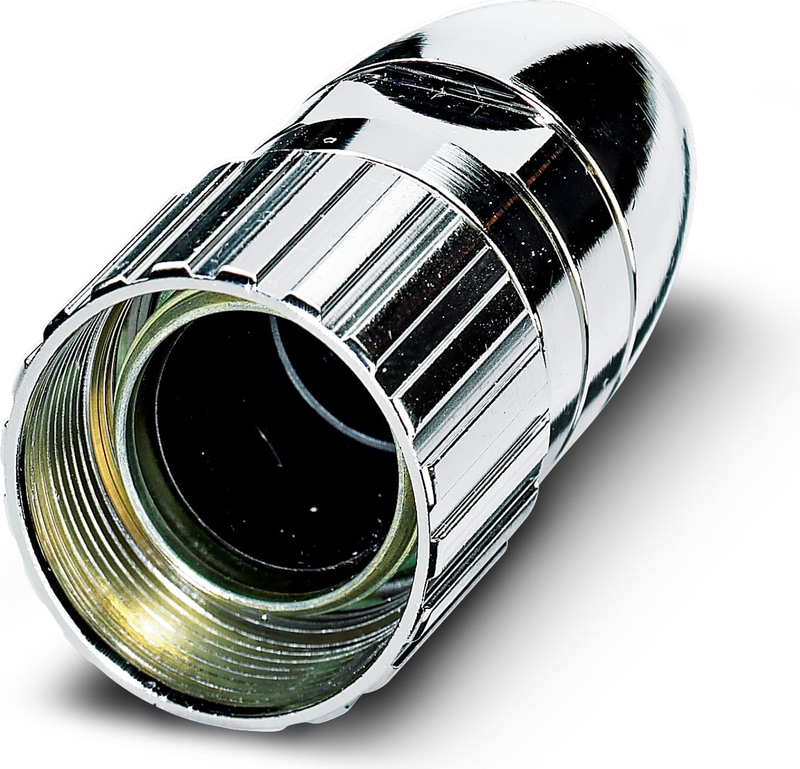

RC-000000080FZ - Housing for circular connectors
Housing for circular connectors, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240259
Technical Specifications
Notes
| Order information: | Order contact inserts separately |
Product properties
| Application | Signal |
| Connection profile | 12 |
| Shielded | no |
| Thread type | M23 |
Material specifications
| Seal material | FPM or NBR or EPDM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | straight |
Cable/line
| External Cable Diameter | 2 mm ... 10.5 mm |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1592680?
Proax is an authorized distributor of Phoenix Contact 1592680 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
