1592626
Official DistributorSKU
PHX1592626
MPN
RC-00000007300
Weight
0.069 kg

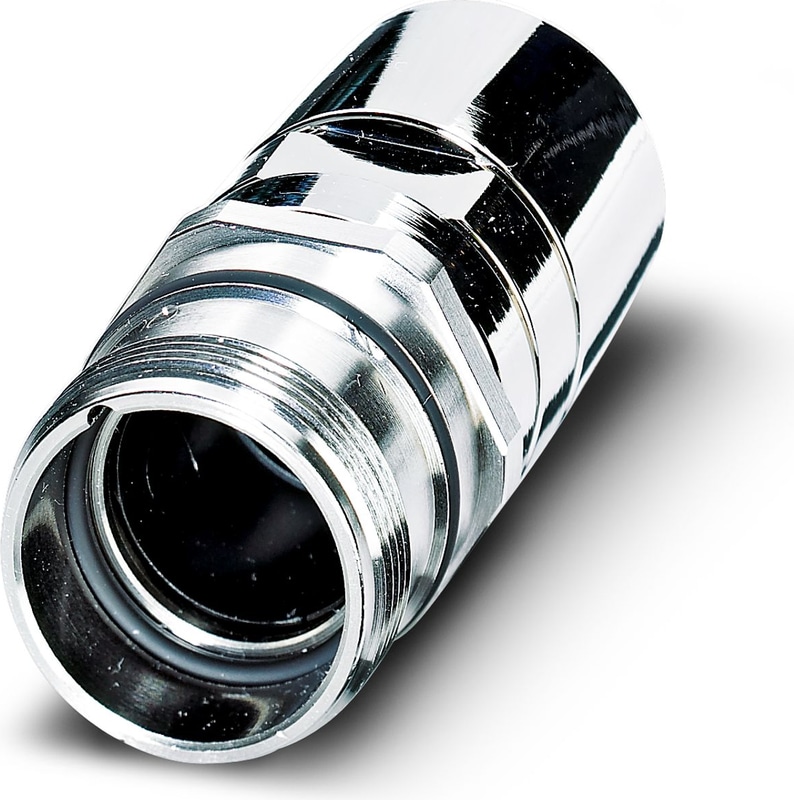

RC-00000007300 - Housing for circular connectors
Housing for circular connectors
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Shielded | no |
| Thread type | M23 |
Material specifications
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | straight |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1592626?
Proax is an authorized distributor of Phoenix Contact 1592626 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
