1592599
Official DistributorSKU
PHX1592599
MPN
RC-00000005200
Weight
0.028 kg

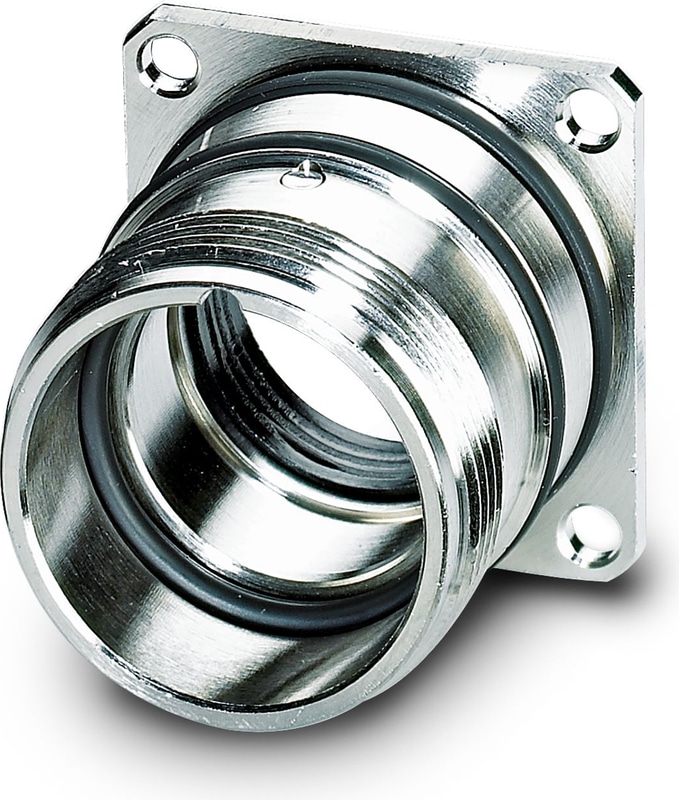

RC-00000005200 - Panel mounting base
Panel mounting base, straight, Screw locking mechanism, M23, Radial O-ring, 4x Ø2,7, shielded: yes, panel thickness min.: 2.7 mm, degree of protection: IP67, series: RC, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240237
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Dimensions
| Panel Thickness | 2.7 mm ... 3.5 mm |
Material specifications
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | straight |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Altitude | 2000 m |
Mounting
| Mounting | 4x Ø2,7 |
Why Proax for Phoenix Contact 1592599?
Proax is an authorized distributor of Phoenix Contact 1592599 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
