1592612
Official DistributorSKU
PHX1592612
MPN
RC-00000006R00
Weight
0.035 kg

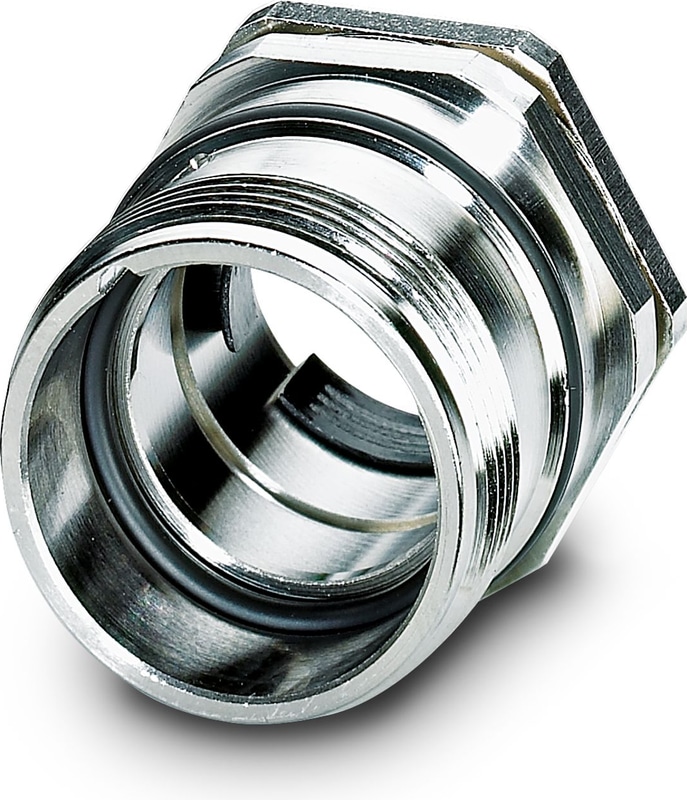

RC-00000006R00 - Panel mounting base
Panel mounting base, series: RC, straight, Screw locking mechanism, M23, Axial seal, Central fixing, shielded: yes
Technical Specifications
Notes
| Order information: | Order contact inserts separately |
Product properties
| Series | RC |
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Material specifications
| Housing Material | Metal |
Connector
| Type | straight |
Ambient conditions
| Degree of Protection | IP65/IP67 |
Mounting
| Mounting | Central fixing |
Why Proax for Phoenix Contact 1592612?
Proax is an authorized distributor of Phoenix Contact 1592612 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
