1592833
Official DistributorSKU
PHX1592833
MPN
RC-0000000H000
Weight
0.055 kg
This product is Not Cancellable/Not Returnable

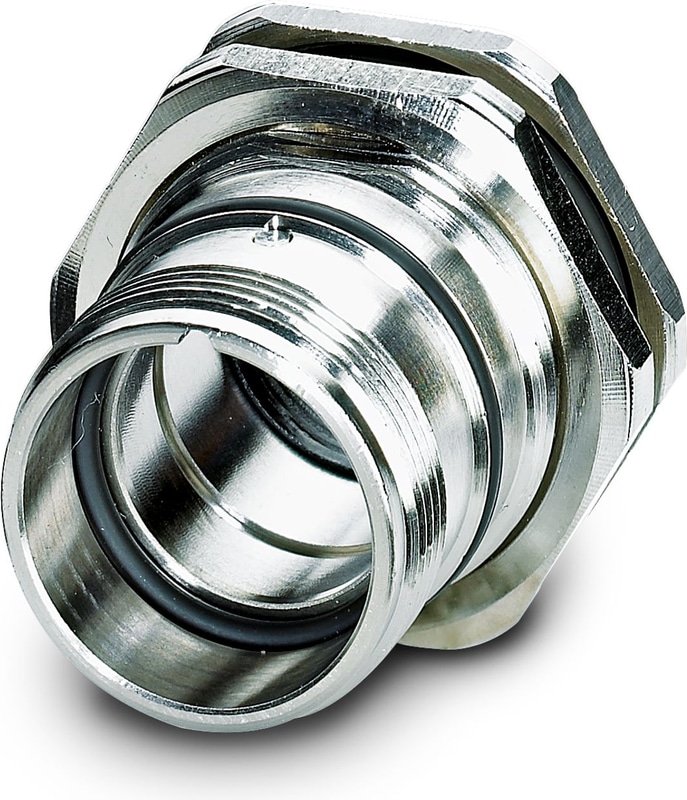

RC-0000000H000 - Panel mounting base
Panel mounting base, series: RC, straight, Screw locking mechanism, M23, Axial O-ring, Central fastening M25 x 1.5, shielded: yes, panel thickness min.: 0.8 mm, panel thickness max.: 6.5 mm, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240287
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Dimensions
| Panel Thickness | 0.8 mm ... 6.5 mm |
Material specifications
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | straight |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Mounting
| Mounting | Central fastening M25 x 1.5 |
Why Proax for Phoenix Contact 1592833?
Proax is an authorized distributor of Phoenix Contact 1592833 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
