1592899
Official DistributorSKU
PHX1592899
MPN
RC-0000000M0FZ
Weight
0.036 kg
This product is Not Cancellable/Not Returnable

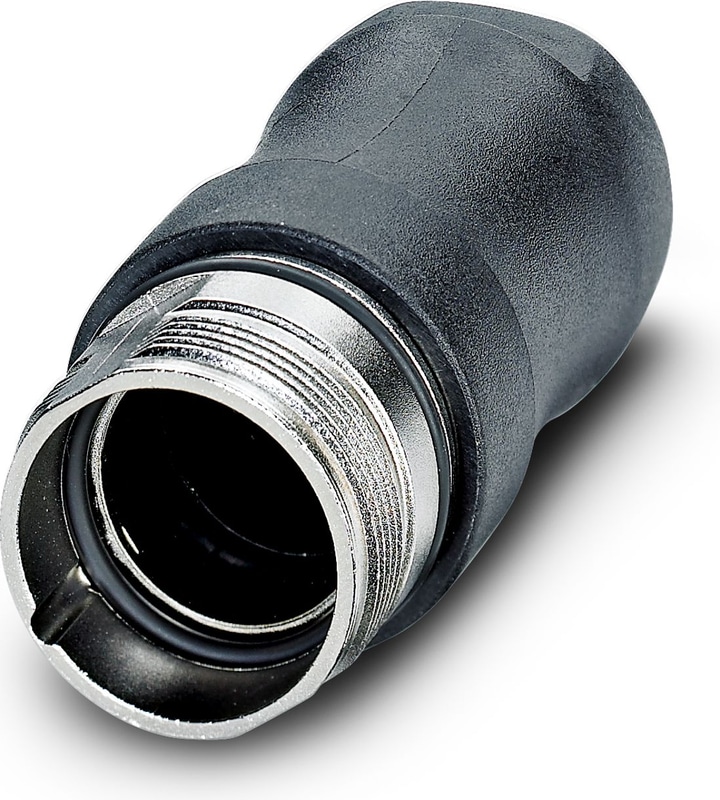

RC-0000000M0FZ - Housing for circular connectors
Housing for circular connectors
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Connection profile | 12 |
| Shielded | yes |
| Thread type | M23 |
Connection data
| Connection Method | Crimp connection |
Material specifications
| Seal material | FPM or NBR or EPDM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn), plastic parts: SPS |
| Gasket and O-ring material | FPM |
Connector
| Type | straight plastic-sheathed |
Cable/line
| External Cable Diameter | 2 mm ... 10.5 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1592899?
Proax is an authorized distributor of Phoenix Contact 1592899 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
