1592865
Official DistributorSKU
PHX1592865
MPN
RC-0000000K0FZ
Weight
0.036 kg

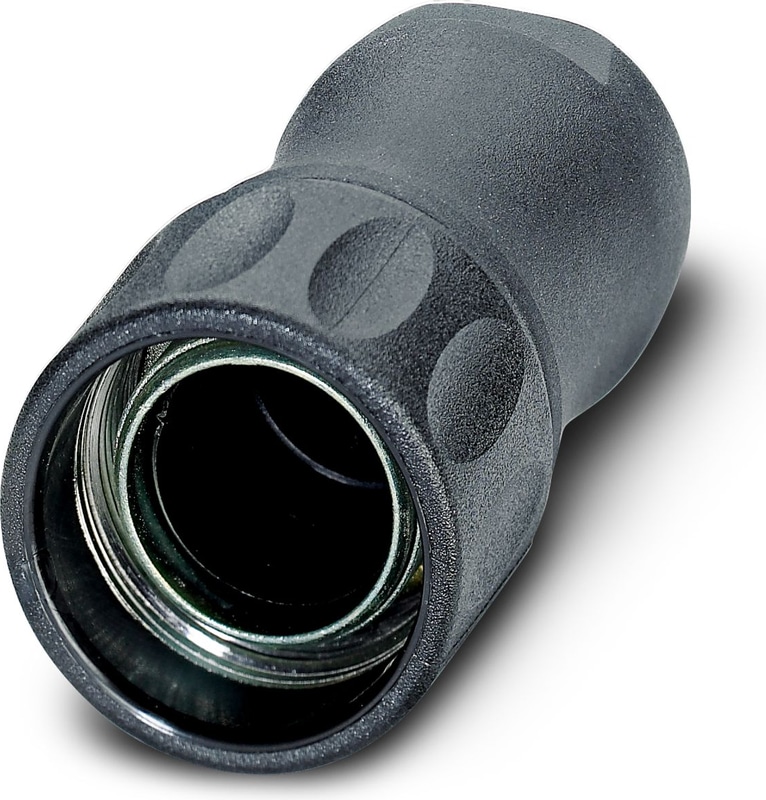

RC-0000000K0FZ - Housing for circular connectors
Housing for circular connectors, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240291
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Shielded | yes |
| Thread type | M23 |
Material specifications
| Seal material | FPM or NBR or EPDM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn), plastic parts: SPS |
| Gasket and O-ring material | FPM |
Connector
| Type | straight plastic-sheathed |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1592865?
Proax is an authorized distributor of Phoenix Contact 1592865 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
