1592992
Official DistributorSKU
PHX1592992
MPN
RC-0000000T0FZ
Weight
0.141 kg
This product is Not Cancellable/Not Returnable

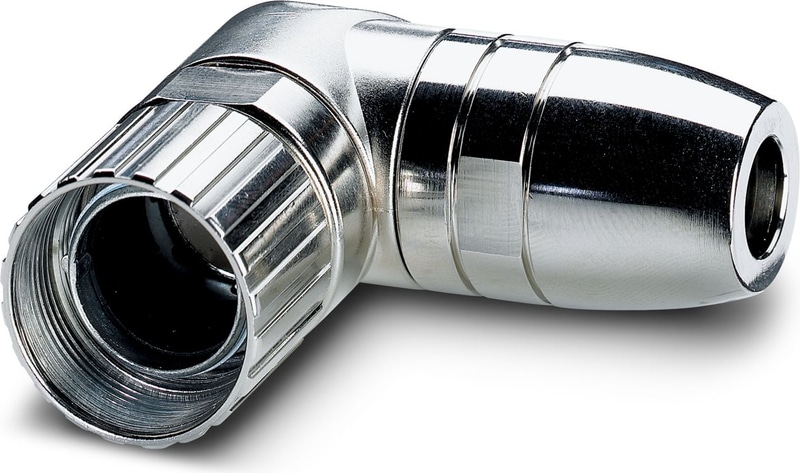

RC-0000000T0FZ - Housing for circular connectors
Housing for circular connectors, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240302
Technical Specifications
Product properties
| Series | RC |
| Application | Signal |
| Connection profile | 12 |
| Shielded | yes |
| Thread type | M23 |
Connection data
| Connection Method | Crimp connection |
Material specifications
| Seal material | FPM or NBR or EPDM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
Connector
| Type | angled |
Cable/line
| External Cable Diameter | 2 mm ... 10.5 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1592992?
Proax is an authorized distributor of Phoenix Contact 1592992 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 8 |
