Name: QTC 2,5-TWIN
Brand: Phoenix Contact
SKU: PHX3206445
Price: 4.4400 CAD
Availability: BackOrder

All Connectors Terminal blocks Fast connection

Official Distributor

By Phoenix Contact

SKU

MPN

3206445

Weight

0.014 kg

Series QTC

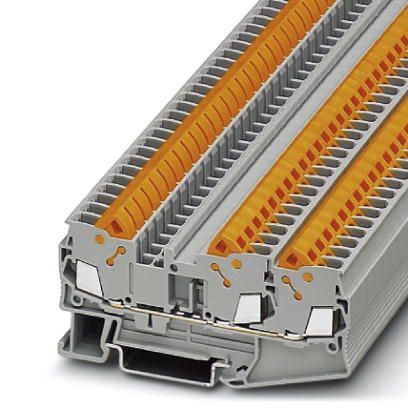

Feed-through terminal block - QTC 2,5-TWIN

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.5 mm² - 2.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: gray

compact design
Tested for railway applications

Technical Specifications

General

Number of rows	1
Number of Connections	3
Potentials	1
Nominal cross section	2.5 mm²
Color	gray
Insulating material	PA
Flammability rating according to UL 94	V0
Area of application	Railway industry
Area of application	Machine building
Area of application	Plant engineering
Area of application	Process industry
Mounting Type	NS 35/7,5
Rated surge voltage	8 kV
Degree of pollution	3
Overvoltage category	III
Insulating material group	I
Maximum power dissipation for nominal condition	0.77 W
Maximum Load Current	24 A (at a conductor cross section of 2.5 mm²; it must not be exceeded by the total current.)
Nominal current I_N	24 A (with a 2.5 mm² conductor cross section)
Nominal voltage U_N	800 V
Open side panel	Yes
Shock protection test specification	DIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protection	guaranteed
Finger protection	guaranteed
Result of surge voltage test	Test passed
Result of power-frequency withstand voltage test	Test passed
Power frequency withstand voltage setpoint	2 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)	Test passed
Result of flexion and pull-out test	Test passed
Bending test rotation speed	10 rpm
Bending test turns	135
Bending test conductor cross section/weight	0.5 mm² / 0.3 kg
Bending test conductor cross section/weight	2.5 mm² / 0.7 kg
Tensile test result	Test passed
Result of tight fit on support	Test passed
Tight fit on carrier	NS 35
Setpoint	1 N
Result of voltage-drop test	Test passed
Result of temperature-rise test	Test passed
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Short circuit stability result	Test passed
Conductor cross section short circuit testing	2.5 mm²
Short-time current	0.3 kA
Result of thermal test	Test passed
Proof of thermal characteristics (needle flame) effective duration	30 s
Result of aging test	Test passed
Ageing test for screwless modular terminal block temperature cycles	192
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Static insulating material application in cold	-60 °C
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3

Dimensions

Width	6.2 mm
End cover width	2.2 mm
Length	82.5 mm
Height	37.8 mm
Height NS 35/7,5	39.3 mm
Height NS 35/15	46.8 mm

Connection data

Connection	1 level
Connection Method	Quick connection
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section solid min.	0.5 mm²
Conductor cross section solid max.	2.5 mm²
Conductor cross section AWG min.	20
Conductor cross section AWG max.	14
Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	2.5 mm²
Min. AWG conductor cross section, flexible	20
Max. AWG conductor cross section, flexible	14
Connection in acc. with standard	IEC/EN 60079-7
Conductor cross section solid min.	0.5 mm²
Conductor cross section solid max.	2.5 mm²
Conductor cross section AWG min.	20
Conductor cross section AWG max.	14
Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	2.5 mm²
Material wire insulation	PVC / PE
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter	VDE 0295 Cl.1-5
Max. wire diameter incl. insulation	3.8 mm

Ambient conditions

Operating Temperature	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standard	IEC 60947-7-1
Connection in acc. with standard	IEC/EN 60079-7

Environmental Product Compliance

China RoHS	Environmentally friendly use period: unlimited = EFUP-e
China RoHS	No hazardous substances above threshold values

Accessories

D-QTC 2,5-TWIN
3206571 - End cover, depth: 31.6 mm, width: 2.2 mm, height: 82.5 mm, color: gray
DS-QTC 2,5
3206607 - Cover segment, depth: 36.5 mm, height: 72 mm, color: gray
ATP-QTC TWIN
3206212 - Partition plate, depth: 46 mm, width: 2 mm, height: 84.4 mm, color: gray
SZF 1-0,6X3,5
1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
3039926
QTC-IL, Operating decal for the QTS terminal block
FBS 2-6
3030336 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
FBS 3-6
3030242 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
FBS 4-6
3030255 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
FBS 5-6
3030349 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
FBS 6-6
1008238 - Plug-in bridge, One side not fully isolated, pitch: 6.2 mm, number of positions: 6, color: red
FBS 10-6
3030271 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
FBS 20-6
3030365 - Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: red
FBS 50-6
3032224 - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: red
RB ST (2,5/4)-1,5
3038943 - Reducing bridge, pitch: 7.1 mm, number of positions: 2, length: 23 mm, color: red
FBSR 2-6
3033715 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
FBSR 3-6
3001594 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
FBSR 4-6
3001595 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
FBSR 5-6
3001596 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
FBSR 10-6
3033716 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
FBSRH 2-6
3033812 - Short-circuit connector, pitch: 6.2 mm, number of positions: 2, color: red
FBS 2-6 BU
3036932 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: blue
FBS 3-6 BU
3036945 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: blue
FBS 4-6 BU
3036958 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: blue
FBS 5-6 BU
3036961 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: blue
FBS 10-6 BU
3032198 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: blue
FBS 20-6 BU
3032208 - Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: blue
FBS 50-6 BU
3032211 - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: blue
NS 35/ 7,5 PERF 2000MM
0801733 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 UNPERF 2000MM
0801681 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 WH PERF 2000MM
1204119 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10
1204122 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/ 7,5 AL UNPERF 2000MM
0801704 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 35/ 7,5 ZN PERF 2000MM
1206421 - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 ZN UNPERF 2000MM
1206434 - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10
0801762 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/ 7,5 CAP
1206560 - DIN rail end piece, for DIN rail NS 35/7.5
NS 35/15 PERF 2000MM
1201730 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 UNPERF 2000MM
1201714 - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 WH PERF 2000MM
0806602 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
NS 35/15 WH UNPERF 2000MM-VPE 10
1204135 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/15 AL UNPERF 2000MM
1201756 - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 35/15 ZN PERF 2000MM
1206599 - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 ZN UNPERF 2000MM
1206586 - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 CU UNPERF 2000MM-VPE 10
1201895 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15 CAP
1206573 - DIN rail end piece, for DIN rail NS 35/15
NS 35/15-2,3 UNPERF 2000MM-VPE 10
1201798 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
ZB 6:UNBEDRUCKT
1051003 -
0824992
Zack marker strip - ZB 6 CUS
ZB 6,LGS:FORTL.ZAHLEN
1051016 -
ZB 6,LGS:GLEICHE ZAHLEN
1051032 -
ZB 6,LGS:L1-N,PE
1051414 -
ZB 6,LGS:U-N
1051430 -
UC-TM 6
0818085 -
0824589
Marker for terminal blocks - UC-TM 6 CUS
UCT-TM 6
0828736 -
ZBF 6:UNBEDRUCKT
0808710 -
UC-TMF 6
0818140 -
UCT-TMF 6
0828746 -
ZBF 6,LGS:FORTL.ZAHLEN
0808749 -
ZBF 6,QR:FORTL.ZAHLEN
0808765 -
ZBF 6,LGS:GERADE ZAHLEN
0810834 -
ZBF 6,LGS:UNGERADE ZAHLEN
0810876 -
PAI-4-FIX-5/6 BU
3035975 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 OG
3035974 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 YE
3035977 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 RD
3035976 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 GN
3035978 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 BK
3035980 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 GY
3035982 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 VT
3035979 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 BN
3035981 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PAI-4-FIX-5/6 WH
3035983 - 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
PS-6
3030996 - Test plug, Modular test plug, number of positions: 1, color: red
PS-6/2,3MM RD
3038736 - Test plug, number of positions: 1, color: red
CLIPFIX 35
3022218 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
CLIPFIX 35-5
3022276 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
E/NS 35 N
0800886 - End clamp, width: 9.5 mm, color: gray
VIP-PA-PWR/20XOE/ 1,0M/S7
2904724 - VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks)
VIP-PA-PWR/20XOE/ 2,0M/S7
2904725 - VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks)
2904726
VIP-PA-PWR/20XOE/ 3,0M/S7, VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), cable length: 3 m
2904730
VIP-PA-PWR/20XOE/10,0M/S7, VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), cable length: 10 m
VIP-PA-PWR/40XOE/ 1,0M/S7
2904731 - VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40 individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks)
VIP-PA-PWR/40XOE/ 2,0M/S7
2904732 - VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40 individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks)
2904733
VIP-PA-PWR/40XOE/ 3,0M/S7, VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40 individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), cable length: 3 m
2904737
VIP-PA-PWR/40XOE/10,0M/S7, VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40 individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), cable length: 10 m
PTCB E1 24DC/1-8A NO
2908262 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
PTCB E1 24DC/1-3A NO
2909909 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
PTCB E1 24DC/2A NO
2909903 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/1-4A NO
2908261 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
PTCB E1 24DC/3A NO
2909904 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/4A NO
2909906 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/6A NO
2909908 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/1A NO
2909902 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/8A NO
2909910 - 1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
PTCB E1 24DC/1-8A SI-R
1135752 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/2A SI-R
1135749 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/1-4A SI-R
1135753 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/4A SI-R
1135745 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/6A SI-R
1135740 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/1A SI-R
1135751 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.
PTCB E1 24DC/8A SI-R
1135734 - 1-channel, electronic fuse for protecting 24 V loads. Easy potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input, and electronic interlock. For installation on DIN rails.

Why Proax for Phoenix Contact QTC 2,5-TWIN?

Proax is an authorized distributor of Phoenix Contact QTC 2,5-TWIN and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Additional Information

Alternate Names	QTC25TWIN
Pack Size	50

Recommended

QTC 2,5-TWIN-PE
3206474 - Ground terminal, number of connections: 3, connection method: Quick connection, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow
QTC 2,5-TWIN BU
3206461 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 3, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: blue
QTC 2,5-TG
3206490 - Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Quick connection, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
QTC 2,5-QUATTRO
3206446 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: gray
QTC 2,5-QUATTRO-PE
3206448 - Ground terminal, number of connections: 4, connection method: Quick connection, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow
QTC 2,5-QUATTRO BU
3206447 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: blue
QTC 2,5-MT
3206487 - Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Quick connection, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
QTC 2,5-PE
3206432 - Ground terminal, number of connections: 2, number of positions: 1, connection method: Quick connection, 1 level, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
QTC 2,5-MT BU
3205226 - Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Quick connection, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/7,5, color: blue
QTC 2,5-HEDI
3206678 - Lever-type disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, number of connections: 2, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: black/orange
QTC 2,5-HESILED 24 (5X20)
3050374 - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.5 mm2- 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
QTC 2,5-HESILA 250 (5X20)
3050387 - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 250 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.5 mm2- 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
QTC 2,5-HESI (5X20)
3050293 - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.5 mm2- 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
QTC 2,5 HESILED 60 (5X20)
3050390 - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 60 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.5 mm2- 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
QTC 2,5 BU
3206429 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 2, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue
QTC 2,5
3206416 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 2, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
QTC 1,5-TWIN
3205048 - Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, number of connections: 3, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.25 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: gray
QTC 1,5-TWIN-MT
3050407 - Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 17.5 A, 1 level, connection method: Quick connection, Rated cross section: 1.5 mm2, cross section: 0.25 mm2 - 1.5 mm2, mounting: NS 35/7,5, NS 35/7,5, color: gray
QTC 1,5-TWIN-PE
3205064 - Ground terminal, number of connections: 3, connection method: Quick connection, 1 level, cross section: 0.25 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow
QTC 1,5-TWIN-TG
3050413 - Disconnect terminal block, nom. voltage: 400 V, nominal current: 17.5 A, number of connections: 3, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.25 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

Sold in quantities of 50

Available for order

Phoenix Contact Availability
