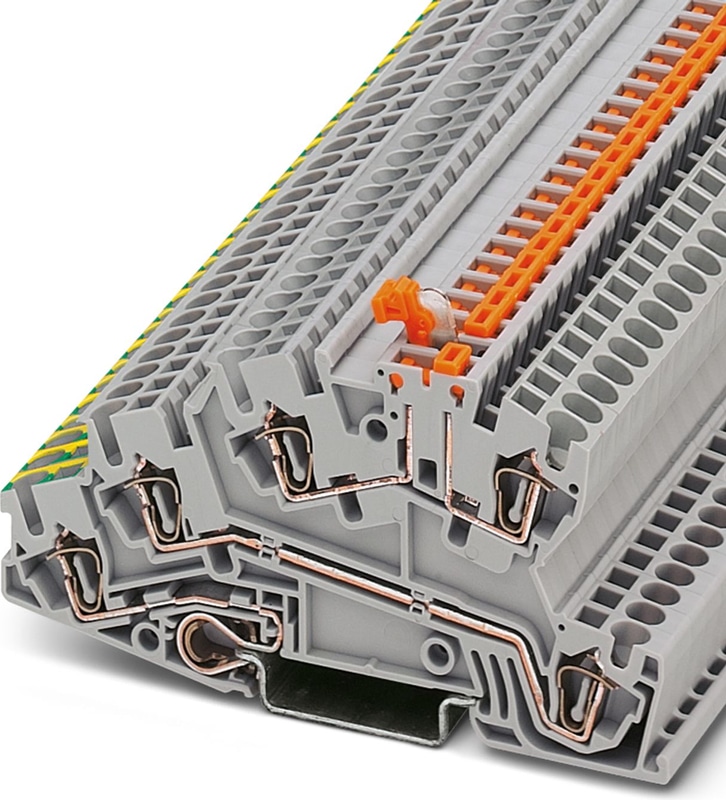

STI 2,5-PE/L/LTB - Installation ground terminal block

Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

The terminal blocks with knife disconnect zone in the upper level meet the safety requirement regarding individual circuit isolation of DIN VDE 0100-718

Technical Specifications

Product properties

Number of Connections	5
Number of rows	3
Potentials	2

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0.77 W

Connection data

Grounding foot	Yes
Number of connections per level	2
Nominal cross section	2.5 mm²

1st and 2nd level

Note	Please observe the current carrying capacity of the DIN rails.
Stripping length	10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1/IEC 60947-7-2
Conductor cross section rigid	0.08 mm² ... 4 mm²
Cross section AWG	28 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.08 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	28 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal Current	24 A
Maximum Load Current	24 A (with 4 mm² conductor cross section)
Nominal Voltage	400 V (phase conductor/phase conductor)
Nominal Voltage	250 V (phase conductor/PE and phase conductor/N)
Nominal cross section	2.5 mm²
Connection in acc. with standard	IEC 60947-7-1
Nominal Current	16 A
Maximum Load Current	16 A
Nominal cross section	2.5 mm²

Dimensions

Width	5.2 mm
End cover width	2.2 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard	IEC 60947-7-1/IEC 60947-7-2
Connection in acc. with standard	IEC 60947-7-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15

Accessories

3038655
D-STI/3B - End cover, width: 2.2 mm, height: 57.8 mm, color: gray
3030857
Partition plate - ATP-STI/3
1204517
Screwdriver - SZF 1-0,6X3,5
3039900
ST-IL - Operating decal for the ST terminal block
1207608
Actuation tool - ST-BW
3062757
CEC 2,5 - Cover for conductor shaft, 10-pos., for spring cage terminal blocks (ST) and terminal blocks with push-in technology (PT) with a width of 5.2 mm
3030941
WST 2,5 - Warning cover, 5-pos., for terminal width: 5.2 mm
3061282
BST 2,5 - Cover for actuation shaft, 5-pos., for spring-cage terminal blocks with width of 5.2 mm
1013634
AP-NLS N - Cover profile, height: 300 mm, color: transparent
3030172
Wire bridge - FBSW 2-5/250MM
3030170
Wire bridge - FBSW 2-5/60MM
3030171
Wire bridge - FBSW 2-5/110MM
3030161
FBS 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, length: 23 mm, color: red
3030174
FBS 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, length: 23 mm, color: red
3030187
FBS 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, length: 23 mm, color: red
3030190
FBS 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, length: 23 mm, color: red
3030213
FBS 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, length: 23 mm, color: red
3030226
FBS 20-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: red
3033702
FBSR 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: red
3001591
FBSR 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: red
3001592
FBSR 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: red
3001593
FBSR 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: red
3033710
FBSR 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: red
0402174
Neutral busbar - NLS-CU 3/10 SN 1000MM
3036877
FBS 2-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: blue
3036880
FBS 3-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: blue
3036893
FBS 4-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: blue
3036903
FBS 5-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: blue
3036916
FBS 10-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: blue
3036929
FBS 20-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: blue
3032114
FBS 50-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 50, color: blue
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
0808642
Zack Marker strip, flat - ZBF 5:UNBEDRUCKT
0810821
0810821 -
0810863
Zack Marker strip, flat - ZBF 5,LGS:UNGERADE ZAHLEN
0818153
Marker for terminal blocks - UC-TMF 5
0824638
Marker for terminal blocks - UC-TMF 5 CUS
0828744
Marker for terminal blocks - UCT-TMF 5
3002843
ISH 2,5/0,2 - Insulating sleeve, color: white
3002856
ISH 2,5/0,5 - Insulating sleeve, color: gray
3002869
ISH 2,5/1,0 - Insulating sleeve, color: black
3032871
Test adapter - PAI-4-N GY
1201662
E/AL-NS 35 - End clamp, for end support of UKH 50 to UKH 240, is pushed onto DIN rail NS 35 and fixed with 2 screws, width: 10 mm, color: aluminum
