Phoenix Contact 3031869
AllConnectorsTerminal blocksSpring-cage connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
STI 2,5-L
Weight
0.011 kg
This product is Not Cancellable/Not Returnable
Series STI

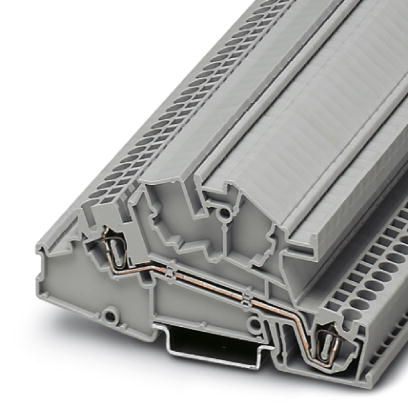

STI 2,5-L - Installation level terminal block

Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

  • Each terminal point can be clearly labeled
Technical Specifications

General

Number of rows2
Number of Connections2
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Connection in acc. with standardIEC 60947-7-1
Nominal current IN24 A
Maximum Load Current24 A (with 4 mm² conductor cross section)
Nominal voltage UN400 V (phase conductor/phase conductor)
Open side panelYes
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Surge voltage test setpoint7.3 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.08 mm² / 0.1 kg
Bending test conductor cross section/weight2.5 mm² / 0.7 kg
Bending test conductor cross section/weight4 mm² / 0.9 kg
Tensile test resultTest passed
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Result of voltage-drop testTest passed
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Conductor cross section short circuit testing4 mm²
Short-time current0.48 kA
Result of aging testTest passed
Ageing test for screwless modular terminal block temperature cycles192
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 2, bogie-mounted
Test frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
End cover width2.2 mm
Length97 mm
Height NS 35/7,550.5 mm
Height NS 35/1558 mm

Connection data

Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum0.5 mm²
Connection MethodSpring-cage connection
Stripping length10 mm
Internal cylindrical gageA3

Ambient conditions

Operating Temperature-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact3030844
    3030844
    D-STI/3 - End cover, width: 2.2 mm, height: 50.5 mm, color: gray
  • Phoenix Contact3030857
    3030857
    Partition plate - ATP-STI/3
  • Phoenix Contact1204517
    1204517
    Screwdriver - SZF 1-0,6X3,5
  • Phoenix Contact3030831
    3030831
    Support bracket - AB-STI/3
  • Phoenix Contact3039900
    3039900
    ST-IL - Operating decal for the ST terminal block
  • Phoenix Contact1207608
    1207608
    Actuation tool - ST-BW
  • Phoenix Contact3062757
    3062757
    CEC 2,5 - Cover for conductor shaft, 10-pos., for spring cage terminal blocks (ST) and terminal blocks with push-in technology (PT) with a width of 5.2 mm
  • Phoenix Contact3030941
    3030941
    WST 2,5 - Warning cover, 5-pos., for terminal width: 5.2 mm
  • Phoenix Contact3061282
    3061282
    BST 2,5 - Cover for actuation shaft, 5-pos., for spring-cage terminal blocks with width of 5.2 mm
  • Phoenix Contact0402174
    0402174
    Neutral busbar - NLS-CU 3/10 SN 1000MM
  • Phoenix Contact1013634
    1013634
    AP-NLS N - Cover profile, height: 300 mm, color: transparent
  • Phoenix Contact3030172
    3030172
    Wire bridge - FBSW 2-5/250MM
  • Phoenix Contact3030170
    3030170
    Wire bridge - FBSW 2-5/60MM
  • Phoenix Contact3030171
    3030171
    Wire bridge - FBSW 2-5/110MM
  • Phoenix Contact3030161
    3030161
    FBS 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, length: 23 mm, color: red
  • Phoenix Contact3030174
    3030174
    FBS 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, length: 23 mm, color: red
  • Phoenix Contact3030187
    3030187
    FBS 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, length: 23 mm, color: red
  • Phoenix Contact3030190
    3030190
    FBS 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, length: 23 mm, color: red
  • Phoenix Contact3030213
    3030213
    FBS 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, length: 23 mm, color: red
  • Phoenix Contact3030226
    3030226
    FBS 20-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: red
  • Phoenix Contact3033702
    3033702
    FBSR 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: red
  • Phoenix Contact3001591
    3001591
    FBSR 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: red
  • Phoenix Contact3001592
    3001592
    FBSR 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: red
  • Phoenix Contact3001593
    3001593
    FBSR 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: red
  • Phoenix Contact3033710
    3033710
    FBSR 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: red
  • Phoenix Contact3036877
    3036877
    FBS 2-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: blue
  • Phoenix Contact3036880
    3036880
    FBS 3-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: blue
  • Phoenix Contact3036893
    3036893
    FBS 4-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: blue
  • Phoenix Contact3036903
    3036903
    FBS 5-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: blue
  • Phoenix Contact3036916
    3036916
    FBS 10-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: blue
  • Phoenix Contact3036929
    3036929
    FBS 20-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: blue
  • Phoenix Contact3032114
    3032114
    FBS 50-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 50, color: blue
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1050004
    1050004
    Zack marker strip - ZB 5 :UNBEDRUCKT
  • Phoenix Contact1050017
    1050017
    1050017 -
  • Phoenix Contact1050020
    1050020
    Zack marker strip - ZB 5,QR:FORTL.ZAHLEN
  • Phoenix Contact1050033
    1050033
    Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN
  • Phoenix Contact1050415
    1050415
    Zack marker strip - ZB 5,LGS:L1-N,PE
  • Phoenix Contact0818108
    0818108
    Marker for terminal blocks - UC-TM 5
  • Phoenix Contact0824581
    0824581
    Marker for terminal blocks - UC-TM 5 CUS
  • Phoenix Contact0828734
    0828734
    Marker for terminal blocks - UCT-TM 5
  • Phoenix Contact0808642
    0808642
    Zack Marker strip, flat - ZBF 5:UNBEDRUCKT
  • Phoenix Contact0810821
    0810821
    0810821 -
  • Phoenix Contact0810863
    0810863
    Zack Marker strip, flat - ZBF 5,LGS:UNGERADE ZAHLEN
  • Phoenix Contact0818153
    0818153
    Marker for terminal blocks - UC-TMF 5
  • Phoenix Contact0824638
    0824638
    Marker for terminal blocks - UC-TMF 5 CUS
  • Phoenix Contact0828744
    0828744
    Marker for terminal blocks - UCT-TMF 5
  • Phoenix Contact3002843
    3002843
    ISH 2,5/0,2 - Insulating sleeve, color: white
  • Phoenix Contact3002856
    3002856
    ISH 2,5/0,5 - Insulating sleeve, color: gray
  • Phoenix Contact3002869
    3002869
    ISH 2,5/1,0 - Insulating sleeve, color: black
  • Phoenix Contact3032871
    3032871
    Test adapter - PAI-4-N GY
  • Phoenix Contact1201662
    1201662
    E/AL-NS 35 - End clamp, for end support of UKH 50 to UKH 240, is pushed onto DIN rail NS 35 and fixed with 2 screws, width: 10 mm, color: aluminum

Why Proax for Phoenix Contact 3031869?

Proax is an authorized distributor of Phoenix Contact 3031869 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size50
Recommended
  • Phoenix Contact3031856
    3031856
    STI 2,5-L/L - Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3201851
    3201851
    STI 2,5-L/N - Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3031937
    3031937
    STI 2,5-PE - Installation ground terminal block, nom. voltage: 800 V, nominal current: 24 A, Spring-cage connection, 1 level, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
  • Phoenix Contact3031830
    3031830
    Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3031843
    3031843
    STI 2,5-PE/L/N - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3032130
    3032130
    STI 2,5-PE/L/LTB - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3031827
    3031827
    STI 2,5-PE/L/NT - Installation ground terminal block, Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., nom. voltage: 400 V, nominal current: 20 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3038642
    3038642
    STI 2,5-PE/L/NTB - Installation ground terminal block, nom. voltage: 400 V, nominal current: 20 A, Spring-cage connection, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3039942
    3039942
    STI 2,5-PE/L/TG - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3038079
    3038079
    STI 2,5-3PE/3L/3NT - Installation ground terminal block, Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3038066
    3038066
    STI 2,5-1PE/3L/1N - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3038053
    3038053
    STI 2,5-1PE/3L/1NT - Installation ground terminal block, Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, Rated cross section: 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3036217
    3036217
    STI 2,5 BU - Installation terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue
  • Phoenix Contact3031924
    3031924
    STI 2,5 - Installation terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
Sold in quantities of 50

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
