Official DistributorSKU
MPN
ATP-STI/3
Weight
0.009 kg
This product is Not Cancellable/Not Returnable

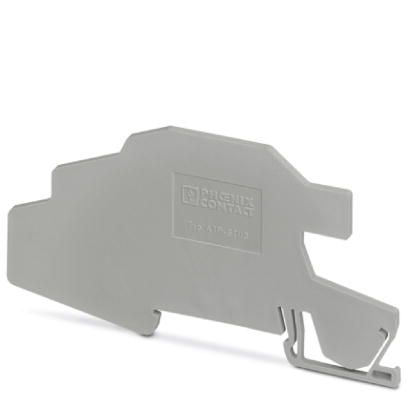

Partition plate - ATP-STI/3
Partition plate, length: 107 mm, width: 2.2 mm, height: 55 mm, color: gray
Technical Specifications
General
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 2.2 mm |
| Length | 107 mm |
| Height | 55 mm |
General
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -60 °C |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Ambient conditions
| Operating Temperature | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 3030857?
Proax is an authorized distributor of Phoenix Contact 3030857 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
