Buy Phoenix Contact STI 2,5 BU 3036217

All Connectors Terminal blocks Spring-cage connection

Official Distributor

By Phoenix Contact

SKU

MPN

STI 2,5 BU

Weight

0.007 kg

This product is Not Cancellable/Not Returnable

Series STI

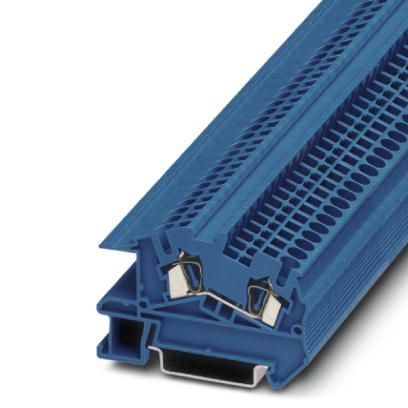

STI 2,5 BU - Installation terminal block

Installation terminal block, nom. voltage: 400 V, nominal current: 24 A, Spring-cage connection, 1 level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue

Compatible with all Phoenix Contact installation terminal blocks
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to distribution boards

Technical Specifications

General

Number of rows	1
Number of Connections	2
Nominal cross section	2.5 mm²
Color	blue
Insulating material	PA
Flammability rating according to UL 94	V0
Rated surge voltage	6 kV
Degree of pollution	3
Overvoltage category	III
Insulating material group	I
Maximum power dissipation for nominal condition	0.77 W
Connection in acc. with standard	IEC 60947-7-1
Nominal current I_N	24 A
Maximum Load Current	32 A (with 4 mm² conductor cross section)
Nominal voltage U_N	400 V
Open side panel	Yes
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Static insulating material application in cold	-60 °C
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3

Dimensions

Width	5.2 mm
End cover width	2.2 mm
Length	59.5 mm
Height NS 35/7,5	43 mm
Height NS 35/15	50.5 mm

Connection data

Conductor cross section solid min.	0.08 mm²
Conductor cross section solid max.	4 mm²
Conductor cross section flexible min.	0.08 mm²
Conductor cross section flexible max.	4 mm²
Conductor cross section AWG min.	28
Conductor cross section AWG max.	12
Conductor cross section flexible, with ferrule without plastic sleeve min.	0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.	2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.	0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.	2.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum	0.5 mm²
Connection Method	Spring-cage connection
Stripping length	10 mm

Ambient conditions

Operating Temperature	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Environmental Product Compliance

China RoHS	Environmentally friendly use period: unlimited = EFUP-e
China RoHS	No hazardous substances above threshold values

Accessories

3030569
End cover, width: 2.2 mm, height: 43 mm, color: gray
1204517
Screwdriver - SZF 1-0,6X3,5
0811228
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
3039900
ST-IL - Operating decal for the ST terminal block
1207608
Actuation tool - ST-BW
3062757
CEC 2,5 - Cover for conductor shaft, 10-pos., for spring cage terminal blocks (ST) and terminal blocks with push-in technology (PT) with a width of 5.2 mm
3030941
WST 2,5 - Warning cover, 5-pos., for terminal width: 5.2 mm
3061282
BST 2,5 - Cover for actuation shaft, 5-pos., for spring-cage terminal blocks with width of 5.2 mm
0402174
Neutral busbar - NLS-CU 3/10 SN 1000MM
1013634
AP-NLS N - Cover profile, height: 300 mm, color: transparent
3030172
Wire bridge - FBSW 2-5/250MM
3030170
Wire bridge - FBSW 2-5/60MM
3030171
Wire bridge - FBSW 2-5/110MM
3030161
FBS 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, length: 23 mm, color: red
3030174
FBS 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, length: 23 mm, color: red
3030187
FBS 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, length: 23 mm, color: red
3030190
FBS 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, length: 23 mm, color: red
3030213
FBS 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, length: 23 mm, color: red
3030226
FBS 20-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: red
3033702
FBSR 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: red
3001591
FBSR 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: red
3001592
FBSR 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: red
3001593
FBSR 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: red
3033710
FBSR 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: red
3036877
FBS 2-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: blue
3036880
FBS 3-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: blue
3036893
FBS 4-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: blue
3036903
FBS 5-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: blue
3036916
FBS 10-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: blue
3036929
FBS 20-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: blue
3032114
FBS 50-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 50, color: blue
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1050004
Zack marker strip - ZB 5 :UNBEDRUCKT
1050017
1050017 -
1050020
Zack marker strip - ZB 5,QR:FORTL.ZAHLEN
1050033
Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN
1050415
Zack marker strip - ZB 5,LGS:L1-N,PE
0818108
Marker for terminal blocks - UC-TM 5
0824581
Marker for terminal blocks - UC-TM 5 CUS
0828734
Marker for terminal blocks - UCT-TM 5
0808642
Zack Marker strip, flat - ZBF 5:UNBEDRUCKT
0810821
0810821 -
0810863
Zack Marker strip, flat - ZBF 5,LGS:UNGERADE ZAHLEN
0818153
Marker for terminal blocks - UC-TMF 5
0824638
Marker for terminal blocks - UC-TMF 5 CUS
0828744
Marker for terminal blocks - UCT-TMF 5
3002843
ISH 2,5/0,2 - Insulating sleeve, color: white
3002856
ISH 2,5/0,5 - Insulating sleeve, color: gray
3002869
ISH 2,5/1,0 - Insulating sleeve, color: black
3032871
Test adapter - PAI-4-N GY
3030983
Test plugs - PS-5
3036725
DP PS-5 - Spacer plate, depth: 29 mm, width: 5.2 mm, height: 22.4 mm, number of positions: 1, color: red
3038723
Test plugs - PS-5/2,3MM RD
1201662
E/AL-NS 35 - End clamp, for end support of UKH 50 to UKH 240, is pushed onto DIN rail NS 35 and fixed with 2 screws, width: 10 mm, color: aluminum
