Official DistributorSKU
PHX0824638

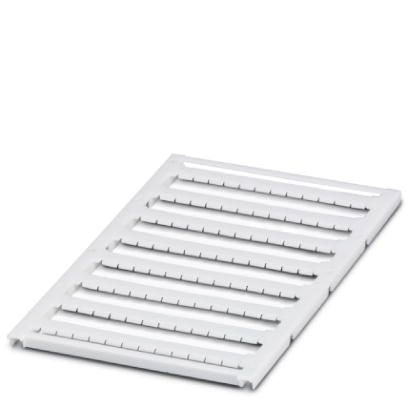

Marker for terminal blocks - UC-TMF 5 CUS
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 5.2 mm, lettering field size: 4.6 x 5.1 mm, Number of individual labels: 96
- Labeling service: Phoenix Contact can custom-label all UniCard markers according to your requirements
- The UC-TMF ... UniCard labeling range includes markers for products with tall and flat marker grooves
Documents
Technical Specifications
Dimensions
| Width (a) | 5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | white |
| Slot type | flat |
| Components | free from silicone and halogen |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 96 |
| Number of individual labels per row | 12 |
| Mounting Type | snap into flat marker groove |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
| Halogen-free | Yes |
