Phoenix Contact 2319841
AllPLC & HMISystem cabling for controllersModules

2319841

Official Distributor

By Phoenix Contact

SKU
PHX2319841
MPN
UM-2KS40/16AI/SI/RS/SO225
Weight
0.835 kg
Series UM

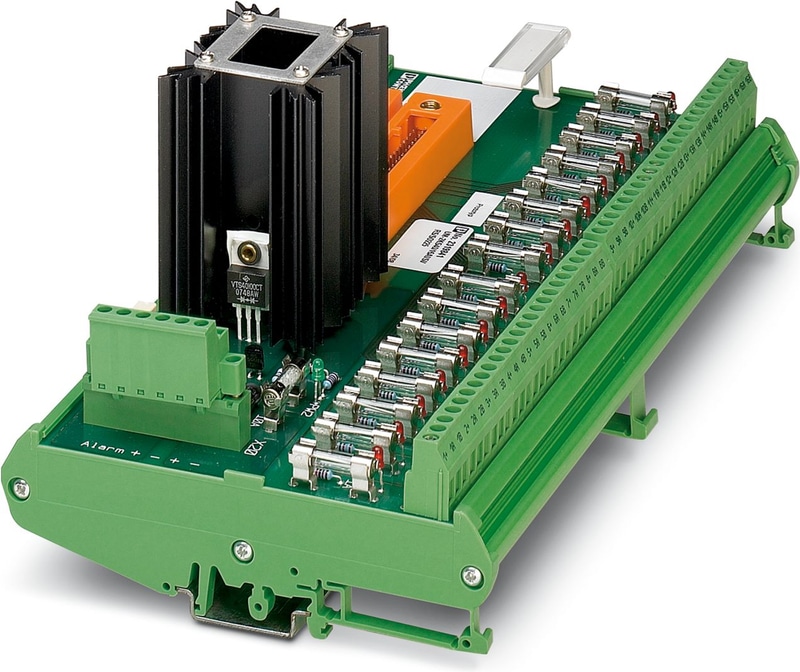

UM-2KS40/16AI/SI/RS/SO225 - Input module

16-channel analog input module with screw connection and redundant voltage supply. Suitable for Yokogawa SAI 143 card.

Technical Specifications

Product properties

Number of Positions40
No. of channels16

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Nominal voltage UN30 V DC
Max. current carrying capacity per branch1 A
Max. total current of all branches10 A

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Supported controller YOKOGAWA ProSafe-RS

Suitable I/O cardSAI143

Field level

Connection MethodScrew connection
Number of Positions48
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Controller level

Connection MethodYokogawa KS-compatible
Number of Connections2
Number of Positions40
Tightening torque0.5 Nm

Supply

Connection Methodpluggable
Number of Connections1
Number of Positions6

Signaling

Status display presentYes, if the fuse fails

Item dimensions

Width250 mm
Height125.4 mm
Depth103.55 mm

Material specifications

Colorgreen (RAL 6021)
Housing insulation materialPVC

Ambient conditions

Degree of ProtectionIP00
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient Temperature (Operation)-20 °C ... 55 °C
Altitude< 2000 m

Air clearances and creepage distances

Standards/regulationsDIN EN 50178: 1998-04

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationVoltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Accessories
  • 2322786
    2322786
    FLK 40-PA/EZ-DR/KS/ 100/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 1.0 m
  • 2314341
    2314341
    FLK 40-PA/EZ-DR/KS/ 200/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 2.0 m
  • 2314354
    2314354
    FLK 40-PA/EZ-DR/KS/ 300/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 3.0 m
  • 2314367
    2314367
    FLK 40-PA/EZ-DR/KS/ 400/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 4.0 m
  • 2321570
    2321570
    FLK 40-PA/EZ-DR/KS/ 500/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 5.0 m
  • 2314943
    2314943
    FLK 40-PA/EZ-DR/KS/ 600/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 6.0 m
  • 2321583
    2321583
    FLK 40-PA/EZ-DR/KS/ 700/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 7.0 m
  • 2314956
    2314956
    FLK 40-PA/EZ-DR/KS/ 800/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 8.0 m
  • 2321415
    2321415
    Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 9.0 m
  • 2314370
    2314370
    FLK 40-PA/EZ-DR/KS/1000/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 10.0 m
  • 2321428
    2321428
    FLK 40-PA/EZ-DR/KS/1100/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 11.0 m
  • 2321431
    2321431
    FLK 40-PA/EZ-DR/KS/1200/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 12.0 m
  • 2321444
    2321444
    FLK 40-PA/EZ-DR/KS/1300/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 13.0 m
  • 2321457
    2321457
    FLK 40-PA/EZ-DR/KS/1400/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 14.0 m
  • 2314383
    2314383
    FLK 40-PA/EZ-DR/KS/1500/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 15.0 m
  • 2321596
    2321596
    Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 16.0 m
  • 2321606
    2321606
    FLK 40-PA/EZ-DR/KS/1700/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 17.0 m
  • 2321619
    2321619
    FLK 40-PA/EZ-DR/KS/1800/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 18.0 m
  • 2321622
    2321622
    FLK 40-PA/EZ-DR/KS/1900/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 19.0 m
  • 2314532
    2314532
    FLK 40-PA/EZ-DR/KS/2000/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 20.0 m
  • 2314545
    2314545
    FLK 40-PA/EZ-DR/KS/2500/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 25.0 m
  • 2314558
    2314558
    Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 30.0 m
  • 2901017
    2901017
    FLK 40-PA/EZ-DR/KS/3500/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 35.0 m
  • 2901052
    2901052
    FLK 40-PA/EZ-DR/KS/4000/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 40.0 m
  • 2902912
    2902912
    FLK 40-PA/EZ-DR/KS/4500/YUC - Cast front adapter with attached round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 45.0 m
  • 2904747
    2904747
    FLK 40-PA/EZ-DR/HF/KS/ 100/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 1.0 m
  • 2904748
    2904748
    Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 2.0 m
  • 2904749
    2904749
    FLK 40-PA/EZ-DR/HF/KS/ 300/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 3.0 m
  • 2904750
    2904750
    FLK 40-PA/EZ-DR/HF/KS/ 400/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 4.0 m
  • 2904645
    2904645
    FLK 40-PA/EZ-DR/HF/KS/ 500/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 5.0 m
  • 2904751
    2904751
    FLK 40-PA/EZ-DR/HF/KS/ 600/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 6 m
  • 2904752
    2904752
    FLK 40-PA/EZ-DR/HF/KS/ 700/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 7.0 m
  • 2904753
    2904753
    FLK 40-PA/EZ-DR/HF/KS/ 800/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 8.0 m
  • 2904754
    2904754
    Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 9.0 m
  • 2904646
    2904646
    FLK 40-PA/EZ-DR/HF/KS/1000/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 10.0 m
  • 2904647
    2904647
    FLK 40-PA/EZ-DR/HF/KS/1500/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 15.0 m
  • 2904488
    2904488
    FLK 40-PA/EZ-DR/HF/KS/2000/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 20.0 m
  • 2904648
    2904648
    Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 25.0 m
  • 2904649
    2904649
    FLK 40-PA/EZ-DR/HF/KS/3000/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 30.0 m
  • 2904650
    2904650
    FLK 40-PA/EZ-DR/HF/KS/3500/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 35.0 m
  • 2904651
    2904651
    FLK 40-PA/EZ-DR/HF/KS/4000/YUC, Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 40.0 m
  • 2904652
    2904652
    FLK 40-PA/EZ-DR/HF/KS/4500/YUC, Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 45.0 m
  • 2904653
    2904653
    FLK 40-PA/EZ-DR/HF/KS/5000/YUC - Cast front adapter with attached, halogen-free round cable and a 40-pos. socket strip injection-molded on both sides for the connection of Yokogawa controllers. Cable length: 50.0 m
