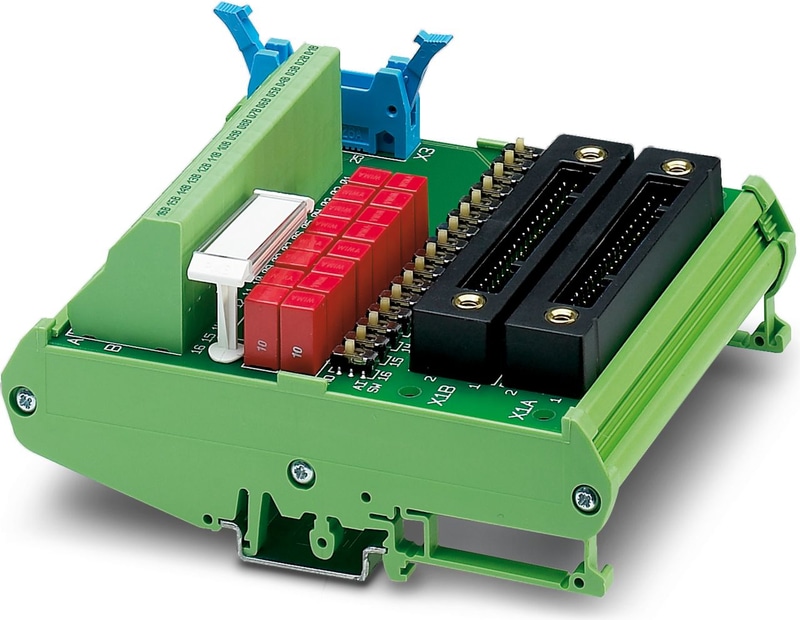

UM-2KS40/AIO16/CS/Z/SO180 - Input module

16-channel analog input/output module with spring-cage connection. Suitable for Yokogawa AAI141, AAI143 and AAI543 cards.Every channel can be switched between the output and the input. Connection option for HART multiplexers.

Technical Specifications

Product properties

No. of channels16

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Operating voltage (DC)24 V DC
Current (per branch)≤ 0.1 A

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Supported controller YOKOGAWA CS3000 CentumVP

Suitable I/O cardAAI543
Suitable I/O cardAAI141
Suitable I/O cardAAI143

Supported controller YOKOGAWA STARDOM

Suitable I/O cardNFAI543
Suitable I/O cardNFAI141
Suitable I/O cardNFAI143

Connection 1 (control level)

Connection MethodYokogawa KS-compatible
Number of Connections2
Number of Positions40
NoteUsable system cables: Phoenix Contact YUC40, Yokogawa KS1
Tightening torque0.5 Nm
Pitch2.54 mm

Connection 2 (field level)

Connection MethodSpring-cage connection
Number of Positions32
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 14

Connection 3 (HART connector)

Connection MethodHART connector
Number of Connections1
Number of Positions26
Pitch1.27 mm

Signaling

Status display presentNo

Item dimensions

Width107.5 mm
Height125.4 mm
Depth61.8 mm

Ambient conditions

Degree of protection (Module)IP00
Degree of protection (Installation location)≤ IP54
Ambient Temperature (Operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m

UKCA

CertificateUKCA-compliant

Air clearances and creepage distances

Standards/regulationsEN IEC 60664-1

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
