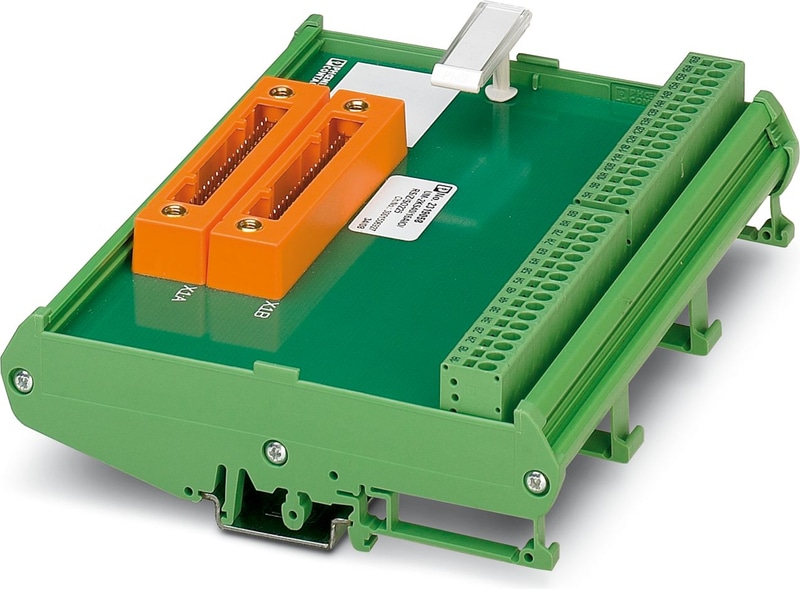

UM-2KS40/16AIO/RS/Z/SO225 - Input/output module
16/8-channel analog I/O module with spring-cage connection and redundant voltage supply. Suitable for Yokogawa SAI 143, SAV 144, SAI 533 cards.
Technical Specifications
Insulation characteristics: Air clearances and creepage distances
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 30 V DC |
| Max. current carrying capacity per branch | 100 mA |
Air clearances and creepage distances
| Rated surge voltage | Basic insulation |
Supported controller YOKOGAWA ProSafe-RS
| Suitable I/O card | SAI143 |
| Suitable I/O card | SAI144 |
| Suitable I/O card | SAI533 |
Field level
| Connection Method | Spring-cage connection |
| Number of Positions | 32 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | Yokogawa KS-compatible |
| Number of Connections | 2 |
| Number of Positions | 40 |
| Tightening torque | 0.5 Nm |
Signaling
| Status display present | No |
Item dimensions
| Width | 126 mm |
| Height | 168 mm |
| Depth | 45 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 55 °C |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
