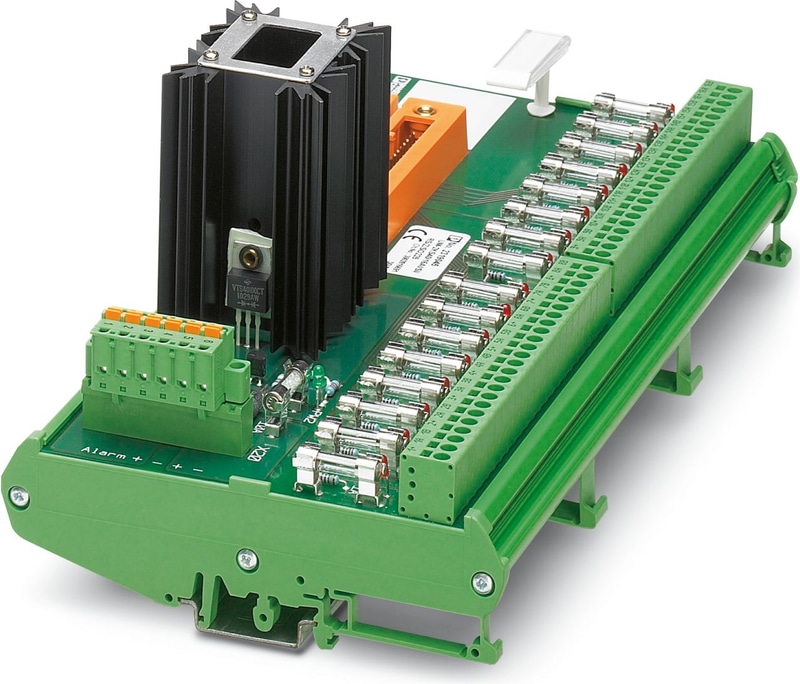

UM-2KS40/16AI/SI/RS/Z/SO225 - Input module

16-channel analog input module with spring-cage connection and redundant voltage supply. Suitable for Yokogawa SAI 143 card.

Technical Specifications

Product properties

No. of channels16

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Nominal voltage UN30 V DC
Max. current carrying capacity per branch1 A

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Supported controller YOKOGAWA ProSafe-RS

Suitable I/O cardSAI143

Field level

Connection MethodSpring-cage connection
Number of Connections1
Number of Positions48
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Controller level

Connection MethodYokogawa KS-compatible
Number of Connections2
Number of Positions40
Tightening torque0.5 Nm

Supply

Connection MethodSpring-cage connection
Number of Connections1
Number of Positions6
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Signaling

Status display presentYes, if the fuse fails

Item dimensions

Width250 mm
Height125.4 mm
Depth97.9 mm

Material specifications

Colorgreen (RAL 6021)
Housing insulation materialPVC

Ambient conditions

Degree of ProtectionIP00
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient Temperature (Operation)-20 °C ... 55 °C
Altitude< 2000 m

Air clearances and creepage distances

Standards/regulationsDIN EN 50178: 1998-04

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationVoltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
