2311357
Official DistributorSKU
PHX2311357
MPN
UM-2KS40/AIO 8/CS/Z/SO180
Weight
0.266 kg
Series UM

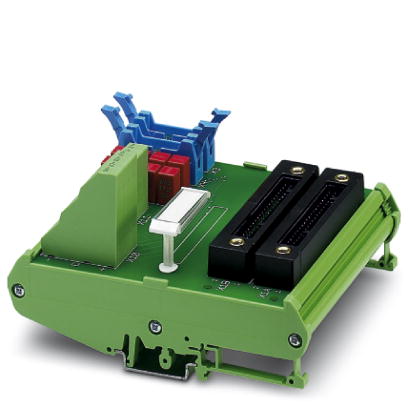

UM-2KS40/AIO 8/CS/Z/SO180 - Passive module
VARIOFACE interface module, for Yokogawa I/O module AAI835
Technical Specifications
| Mounting Position | any |
| Width | 108 mm |
| Height | 126 mm |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Nominal Voltage (UN) | 24 V DC ± 10% |
| Number of Connections | 1 |
| Connection Method | Spring-cage connection |
| Number of Positions | 20 |
| Conductor cross section stranded (Min.) | 0.2 mm² |
| Conductor cross section stranded (Max.) | 1.5 mm² |
| Conductor cross section AWG/kcmil (Min.) | 24 |
| Conductor cross section AWG/kcmil (Max.) | 14 |
| Number of Connections | 2 |
| Connection Method | Yokogawa KS-compatible |
| Number of Positions | 40 |
Why Proax for Phoenix Contact 2311357?
Proax is an authorized distributor of Phoenix Contact 2311357 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
