1602025
Official DistributorSKU
PHX1602025
MPN
DC-B 6-CT-M
Weight
0.065 kg
This product is Not Cancellable/Not Returnable
Series DC-B

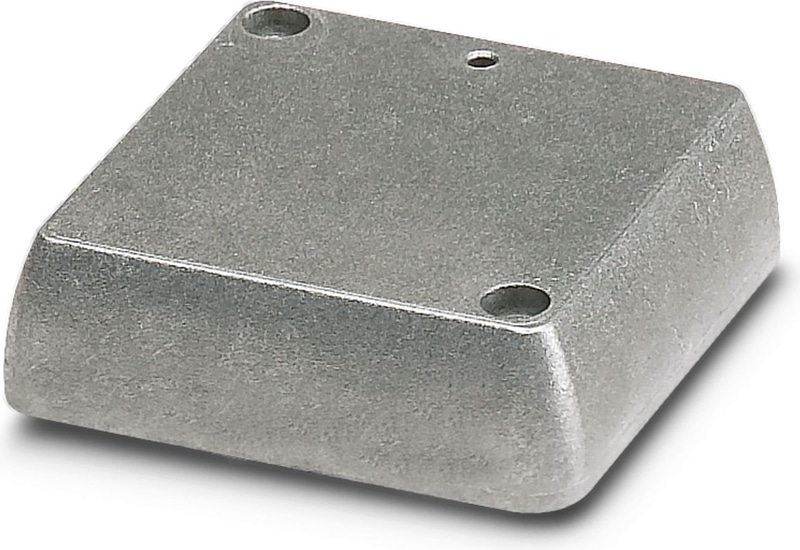

DC-B 6-CT-M - Housing cover
DUPLICON, aluminum housing cover, type B6, IP67 protection, with two M3 screws, V2A, captive, gasket and hole for retaining cord, for self-tapping M3 screw
Technical Specifications
Product properties
| Housing type | Housing cover |
| Type | DC-B6 |
| Protective cover | yes |
Dimensions
| Width | 67 mm |
| Height | 18 mm |
| Length | 67 mm |
Material specifications
| Seal material | NBR |
| Housing Material | die-cast aluminum |
| Housing surface material | EMC-conductive |
| Material, protective cover | Al |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
Accessories
Why Proax for Phoenix Contact 1602025?
Proax is an authorized distributor of Phoenix Contact 1602025 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
