1602164
Official DistributorSKU
PHX1602164
MPN
DC-B 6-HM-M
Weight
0.108 kg
This product is Not Cancellable/Not Returnable
Series DC-B

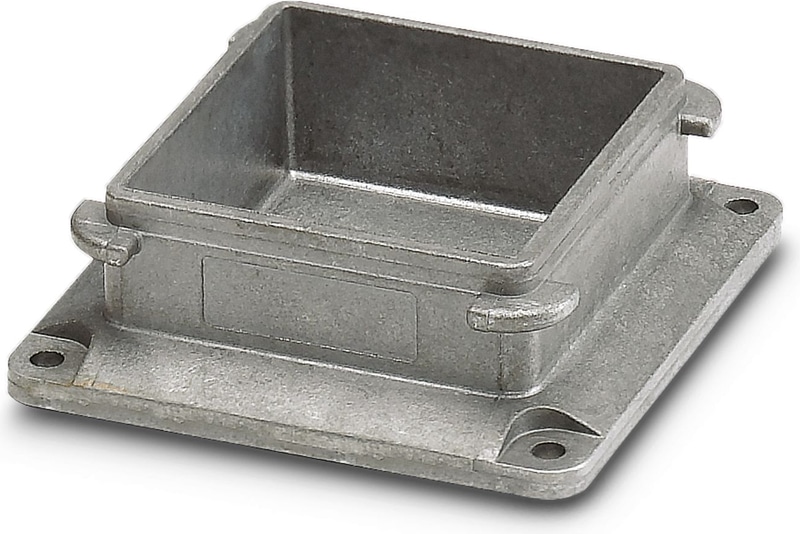

DC-B 6-HM-M - Basic housing
DUPLICON, aluminum basic housing with enclosed bottom, type B6, IP67 protection
Technical Specifications
Product properties
| Housing type | Box mounting bases |
| Type | DC-B6 |
| Protective cover | no |
| Pg screw connection | none |
Dimensions
| Width | 81 mm |
| Height | 24.3 mm |
| Length | 81 mm |
Material specifications
| Color | pearl gray |
| Material Housing | die-cast aluminum |
| Housing Material | die-cast aluminum |
Mechanical data
| Locking Type | Pin |
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Degree of Protection | IP65/IP66/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
Accessories
Why Proax for Phoenix Contact 1602164?
Proax is an authorized distributor of Phoenix Contact 1602164 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
