1581201
Official DistributorSKU
PHX1581201
MPN
DC-B 6-H-80/O2STM25G-M
Weight
0.285 kg
Series DC-B

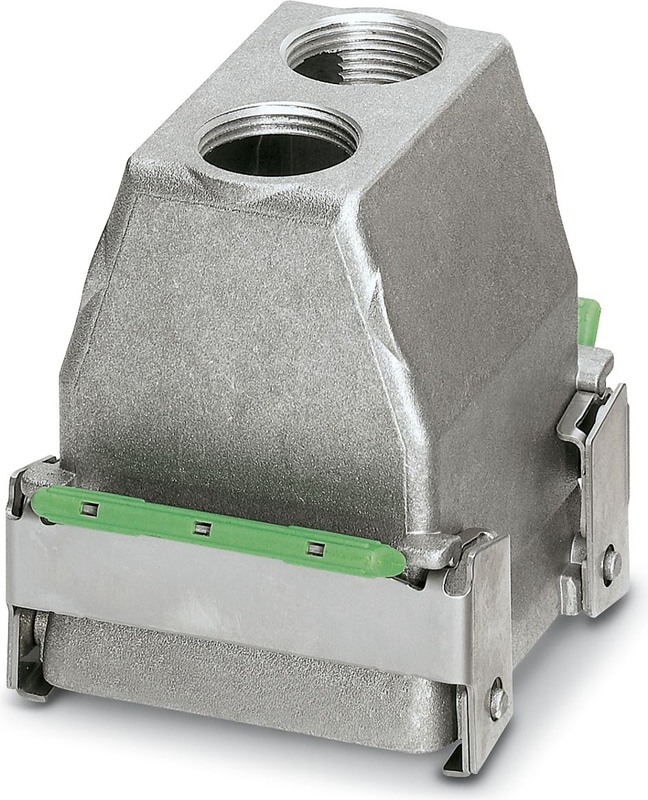

DC-B 6-H-80/O2STM25G-M - Housing
DUPLICON, aluminum stackable housing for DUPLICON contact inserts, type B6, IP67 protection, with two locking latches, gasket and two M25 cable screw connection threads (without cable screw connection), straight output
Technical Specifications
Product properties
| Housing type | Sleeve housing |
| Type | DC-B6 |
| Type of the screw connection | With 2x M20 thread |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Height | 37 mm |
Material specifications
| Color | pearl gray |
| Material Housing | die-cast aluminum |
| Seal material | NBR |
| Housing Material | die-cast aluminum |
| Locking latch material | Stainless steel |
Mechanical data
| Type of the screw connection | With 2x M20 thread |
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Degree of Protection | IP65/IP66/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1581201?
Proax is an authorized distributor of Phoenix Contact 1581201 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
