DC-B 6-IB-7X4-PCB-180 - Contact insert

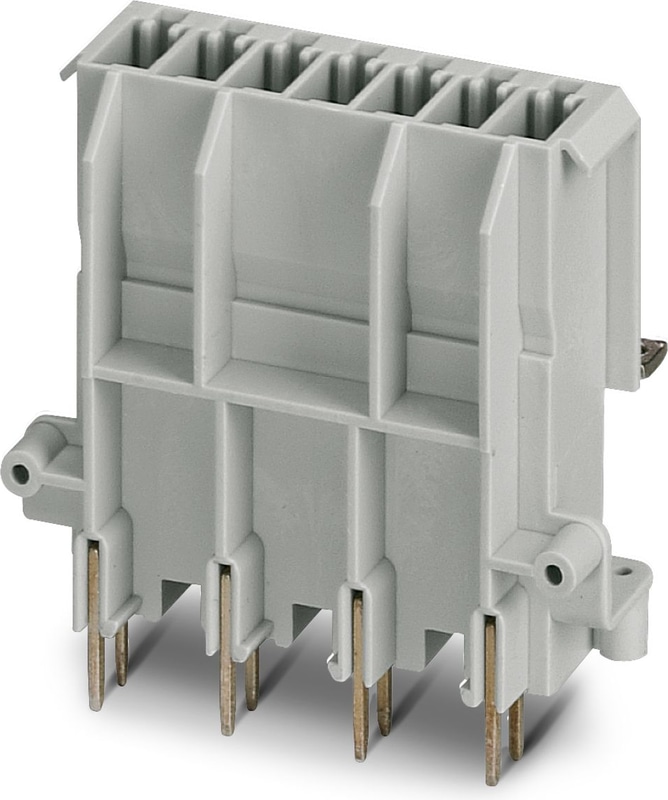

DUPLICON, panel mounting contact insert, 6 x 4 mm2 + PE, 400/690 V, 25 A, 180° PCB connection, type B6, IP20 protection
Technical Specifications
Product properties
| Type | DC-B6 |
| Number of Positions | 6 |
| Connection profile | 6+PE |
| Contact material type | rolled |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 55 mm |
| Height | 53.5 mm |
| Length | 25.3 mm |
Connection technology
| Connection technology | Solder connection |
Electrical properties
| Rated voltage (III/3) | 400 V (Conductor-PE) |
| Rated voltage (III/3) | 690 V (Conductor-Conductor) |
| Rated surge voltage | 6 kV |
| Rated current | 25 A |
| Rated current | 25 A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Contact Material | Cu |
| Contact surface material | Ag |
| Contact carrier material | PA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
