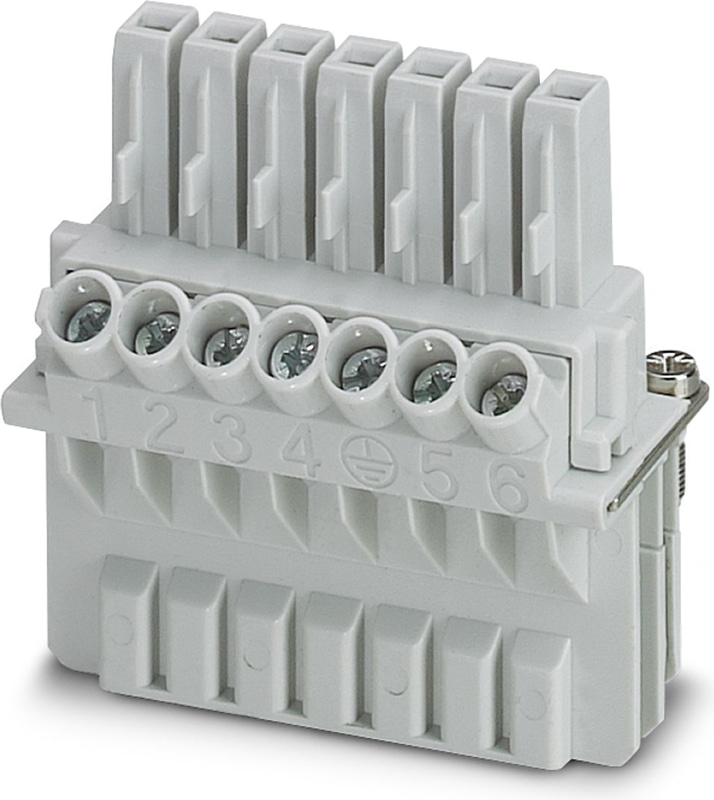

DC-B 6-ID-7X4-UT - Contact insert

DUPLICON, connector contact insert, 6 x 4 mm2 + PE, 400/690 V, 25 A, screw connection, type B6, IP20 protection

Technical Specifications

Product properties

Type	DC-B6
Number of Positions	6
Connection profile	6+PE

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	54.5 mm
Height	29.5 mm
Length	53 mm

Connection technology

Screw connection

Conductor connection

Conductor Cross Section	0.2 mm² ... 4 mm² (6 mm² without ferrule)
Connection cross section AWG	24 ... 12 (AWG 10 without ferrule)
Tightening torque	0.5 Nm ... 0.6 Nm
Stripping length of the individual wire	10 mm

Electrical properties

Rated voltage (III/3)	400 V (L-PE)
Rated voltage (III/3)	690 V (L-L)
Rated surge voltage	6 kV
Rated current	25 A
Rated current	25 A

Mechanical data

Insertion/withdrawal cycles

≥ 100

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Contact Material	Cu
Contact surface material	Ag
Contact carrier material	PA

Ambient conditions

Degree of Protection	IP20
Ambient Temperature (Operation)	-40 °C ... 100 °C

Accessories

3040588
PC - Coding star, 4-section, depth: 6 mm, width: 3 mm, height: 3 mm, color: red
0201155
EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
