1602041
Official DistributorSKU
PHX1602041
MPN
DC-B 6-HD-M20-M
Weight
0.165 kg
This product is Not Cancellable/Not Returnable
Series DC-B

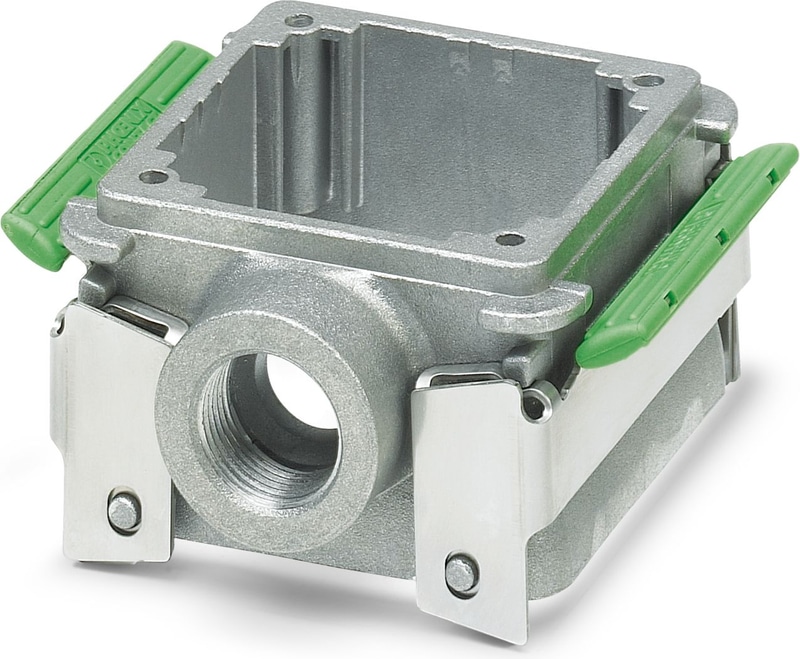

DC-B 6-HD-M20-M - Stackable housing
DUPLICON, aluminum stackable housing for DUPLICON contact inserts, type B6, IP67 protection, with two locking latches, gasket and an M20 cable screw connection thread (without cable screw connection)
Technical Specifications
Product properties
| Housing type | Stackable housing |
| Type | DC-B6 |
| No. of cable outlets | 1 |
| Type of the screw connection | with M20 thread |
| Protective cover | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Width | 75 mm |
| Height | 41 mm |
| Length | 88 mm |
Material specifications
| Color | pearl gray |
| Material Housing | die-cast aluminum |
| Seal material | NBR |
| Housing Material | die-cast aluminum |
| Locking latch material | Stainless steel |
Mechanical data
| Type of the screw connection | with M20 thread |
| Locking Type | Latch |
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Degree of Protection | IP65/IP66/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
Accessories
HC-M-KV-M20(9-13) - Metal screw connection up to 5 bar, thread length: 6 mm, cable diameter: 9 - 13 mm, WAF 22, screw connection: M20
HC-M-KV-M20(11-16) - Metal screw connection up to 5 bar, thread length: 6 mm, cable diameter: 11 - 16 mm, WAF 27, screw connection: M20
Why Proax for Phoenix Contact 1602041?
Proax is an authorized distributor of Phoenix Contact 1602041 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
