1602339
Official DistributorSKU
PHX1602339
MPN
DC-B 6-A-HB-G
Weight
0.005 kg
This product is Not Cancellable/Not Returnable
Series DC-B

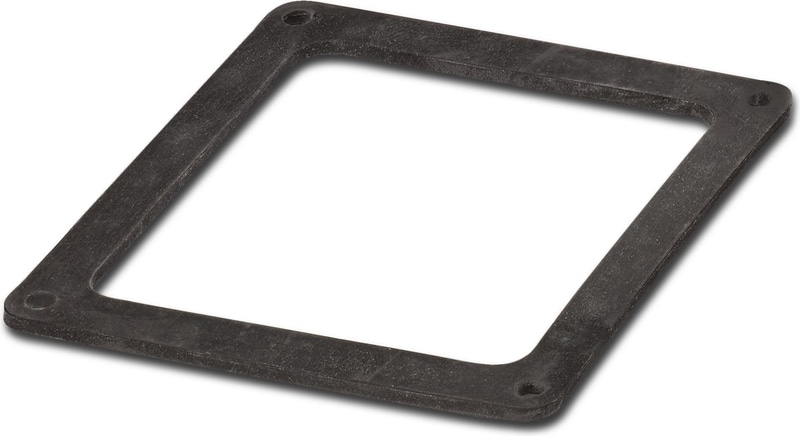

DC-B 6-A-HB-G - Seal
DUPLICON, flat gasket for panel mounting base, made of conductive NBR
Technical Specifications
Product properties
| Type | DC-B6 |
Dimensions
| Height | 1.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 70 mm |
| Hole diameter | 3.7 mm |
Material specifications
| Color | black |
| Seal material | NBR |
Why Proax for Phoenix Contact 1602339?
Proax is an authorized distributor of Phoenix Contact 1602339 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
