Phoenix Contact 1581010

1581010

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1581010
MPN
DC-B 6-ADP-4M12-FS-5CON-7X4-UT
Weight
0.384 kg
Series DC-B

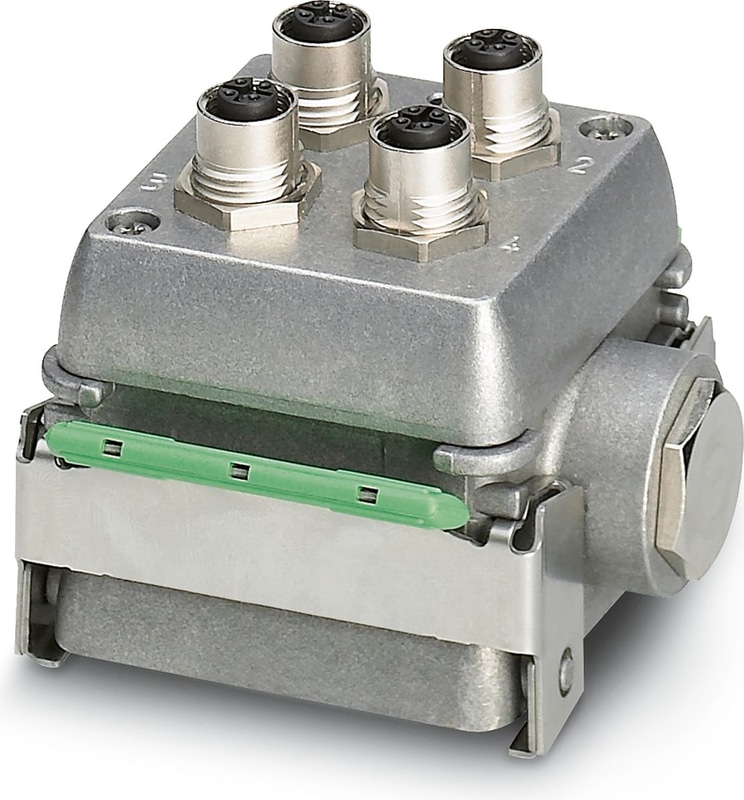

DC-B 6-ADP-4M12-FS-5CON-7X4-UT - Housing

DUPLICON, aluminum M12 adapter with 4 x M12 SPEEDCON fast connection (5-pos., A-coded, 4 A, 60 V) for DUPLICON contact inserts 6 x 4 mm2 + PE, type B6, IP67 protection, with two locking latches, gasket and an M20 filler plug

Technical Specifications

Product properties

ApplicationM12 adapter
TypeDC-B6
Number of Positions5
Shieldedno
Cable outletstraight

Connection data

Connection MethodM12 plug connection

Dimensions

Width75 mm
Height81.1 mm
Length89 mm

Material specifications

Colorpearl gray
Material Housingdie-cast aluminum
Seal materialNBR
Housing Materialdie-cast aluminum
Locking latch materialStainless steel

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP66
Degree of ProtectionIP67
Degree of ProtectionIP65/IP66/IP67
Ambient Temperature (Operation)-40 °C ... 100 °C

Why Proax for Phoenix Contact 1581010?

Proax is an authorized distributor of Phoenix Contact 1581010 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
