UTI 2,5-L

Weight

0.011 kg

Series UTI

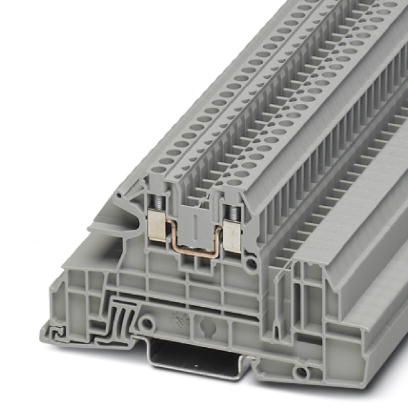

UTI 2,5-L - Installation level terminal block

Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors

General

Number of rows	3
Number of Connections	2
Nominal cross section	4 mm²
Color	gray
Insulating material	PA
Flammability rating according to UL 94	V0
Current carrying capacity of the neutral busbar	140 A
Rated surge voltage	4 kV
Rated surge voltage	6 kV
Degree of pollution	3
Overvoltage category	III
Insulating material group	I
Maximum power dissipation for nominal condition	1.02 W
Nominal current I_N	24 A (with 4 mm² conductor cross section)
Maximum Load Current	30 A (with 4 mm² conductor cross section and 3-pos. terminal block)
Nominal voltage U_N	400 V (phase conductor/phase conductor)
Open side panel	Yes
Shock protection test specification	DIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protection	guaranteed
Finger protection	guaranteed
Result of surge voltage test	Test passed
Surge voltage test setpoint	7.3 kV
Result of power-frequency withstand voltage test	Test passed
Power frequency withstand voltage setpoint	1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)	Test passed
Result of flexion and pull-out test	Test passed
Bending test rotation speed	10 rpm
Bending test turns	135
Bending test conductor cross section/weight	0.2 mm² / 0.2 kg
Bending test conductor cross section/weight	2.5 mm² / 0.7 kg
Bending test conductor cross section/weight	4 mm² / 0.9 kg
Tensile test result	Test passed
Result of tight fit on support	Test passed
Tight fit on carrier	NS 35
Setpoint	1 N
Result of voltage-drop test	Test passed
Result of temperature-rise test	Test passed
Short circuit stability result	Test passed
Conductor cross section short circuit testing	2.5 mm²
Short-time current	0.3 kA
Conductor cross section short circuit testing	4 mm²
Short-time current	0.48 kA
Result of thermal test	Test passed
Proof of thermal characteristics (needle flame) effective duration	30 s
Oscillation, broadband noise test result	Test passed
Test specification, oscillation, broadband noise	DIN EN 50155 (VDE 0115-200):2008-03
Test spectrum	Service life test category 2, bogie-mounted
Test frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Shock test result	Test passed
Test specification, shock test	DIN EN 50155 (VDE 0115-200):2008-03
Shock form	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Static insulating material application in cold	-60 °C
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3

Dimensions

Width	5.2 mm
End cover width	2.2 mm
Length	93.5 mm
Height NS 35/7,5	51.5 mm
Height NS 35/15	59 mm

Connection data

Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	4 mm²
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	4 mm²
Conductor cross section AWG min.	24
Conductor cross section AWG max.	12
Conductor cross section flexible, with ferrule without plastic sleeve min.	0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.	2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.	0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.	2.5 mm²
2 conductors with same cross section, solid min.	0.2 mm²
2 conductors with same cross section, solid max.	1.5 mm²
2 conductors with same cross section, stranded min.	0.2 mm²
2 conductors with same cross section, stranded max.	1.5 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum	0.25 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum	0.75 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum	0.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum	0.75 mm²
Connection Method	Screw connection
Stripping length	9 mm
Internal cylindrical gage	A3
Screw thread	M3
Tightening torque, min	0.5 Nm
Tightening torque max	0.6 Nm

Ambient conditions

Operating Temperature	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 70 °C

Environmental Product Compliance

China RoHS	Environmentally friendly use period: unlimited = EFUP-e
China RoHS	No hazardous substances above threshold values

1205053
Screwdriver - SZS 0,6X3,5
0402174
Neutral busbar - NLS-CU 3/10 SN 1000MM
0423014
AKG 16 BU - Connection terminal block, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm2, cross section: 1.5 mm2 - 16 mm2, mounting: Neutral busbar, color: blue
0424013
AKG 35 BU - Connection terminal block, nom. voltage: 300 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting: Neutral busbar, color: blue
3076038
Support bracket - AB-UTI/3
3076036
D-UTI/3 - End cover, depth: 51.2 mm, width: 2.2 mm, height: 93.5 mm, color: gray
3213990
Partition plate - ATP-PTI/3
1013634
AP-NLS N - Cover profile, height: 300 mm, color: transparent
3030172
Wire bridge - FBSW 2-5/250MM
3030170
Wire bridge - FBSW 2-5/60MM
3030171
Wire bridge - FBSW 2-5/110MM
3030161
FBS 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, length: 23 mm, color: red
3030174
FBS 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, length: 23 mm, color: red
3030187
FBS 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, length: 23 mm, color: red
3030190
FBS 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, length: 23 mm, color: red
3030213
FBS 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, length: 23 mm, color: red
3030226
FBS 20-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: red
3038930
FBS 50-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 50, color: red
3033702
FBSR 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: red
3001591
FBSR 3-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: red
3001592
FBSR 4-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: red
3001593
FBSR 5-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: red
3033710
FBSR 10-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: red
3036877
FBS 2-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: blue
3036880
FBS 3-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 3, color: blue
3036893
FBS 4-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 4, color: blue
3036903
FBS 5-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: blue
3036916
FBS 10-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 10, color: blue
3036929
FBS 20-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 20, color: blue
3032114
FBS 50-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 50, color: blue
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
1050004
Zack marker strip - ZB 5 :UNBEDRUCKT
1050017
1050017 -
1050020
Zack marker strip - ZB 5,QR:FORTL.ZAHLEN
1050033
Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN
1050415
Zack marker strip - ZB 5,LGS:L1-N,PE
0818108
Marker for terminal blocks - UC-TM 5
0824581
Marker for terminal blocks - UC-TM 5 CUS
0828734
Marker for terminal blocks - UCT-TM 5
0808642
Zack Marker strip, flat - ZBF 5:UNBEDRUCKT
0810821
0810821 -
0810863
Zack Marker strip, flat - ZBF 5,LGS:UNGERADE ZAHLEN
0818153
Marker for terminal blocks - UC-TMF 5
0824638
Marker for terminal blocks - UC-TMF 5 CUS
0828744
Marker for terminal blocks - UCT-TMF 5
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
3035975
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035974
Test adapter - PAI-4-FIX-5/6 OG
3035977
Test adapter - PAI-4-FIX-5/6 YE
3035976
Test adapter - PAI-4-FIX-5/6 RD
3035978
Test adapter - PAI-4-FIX-5/6 GN
3035980
Test adapter - PAI-4-FIX-5/6 BK
3035982
Test adapter - PAI-4-FIX-5/6 GY
3035979
Test adapter - PAI-4-FIX-5/6 VT
3035981
Test adapter - PAI-4-FIX-5/6 BN
3035983
Test adapter - PAI-4-FIX-5/6 WH
3030983
Test plugs - PS-5
3036725
DP PS-5 - Spacer plate, depth: 29 mm, width: 5.2 mm, height: 22.4 mm, number of positions: 1, color: red
3038723
Test plugs - PS-5/2,3MM RD
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray

Proax is an authorized distributor of Phoenix Contact 3076034 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Pack Size

3076031
UTI 2,5-L/L - Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076033
UTI 2,5-L/LB - Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, Screw connection, Rated cross section: 1.5 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076035
UTI 2,5-L/N - Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076023
UTI 2,5-L/LTB - Installation level terminal block, with integrated disconnect knife, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, Rated cross section: 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076029
UTI 2,5-PE/L/L - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076030
UTI 2,5-PE/L/N - Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076028
UTI 2,5-PE/L/NT - Installation ground terminal block, Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
3076032
UTI 2,5-PE/L/NTB - Installation ground terminal block, nom. voltage: 400 V, nominal current: 21 A, Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

3076034
