UMK- 8 RM/MR-G24/ 1/PLC

Weight

0.148 kg

Series UMK

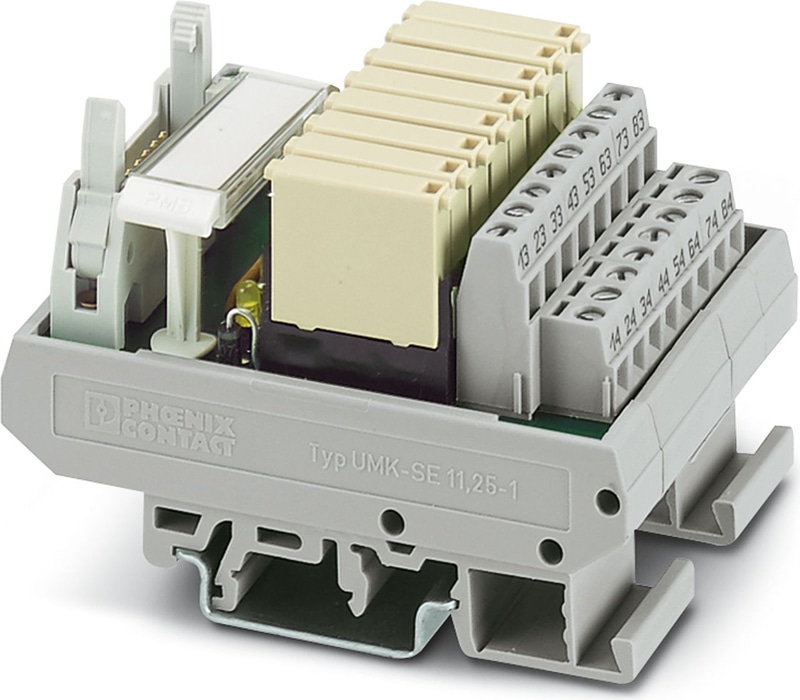

UMK- 8 RM/MR-G24/ 1/PLC - Active module

VARIOFACE output module, with 8 miniature relays, 1 N/O contact each, plugged, for 24 V DC (incl. relay)

Narrow design width of just 55 mm (8 channels) or 202 mm (32 channels)
LED status indicator per signal path and supply voltage
Universal applications from 1 mA to 3 A continuous current thanks to 2-layer double contact with hard gold plating
Freewheeling and polarity protection diode for each signal path
Plug-in miniature relays each with an N/O contact

Technical Specifications

Product properties

No. of channels	8
Operating mode	100% operating factor
Mechanical service life	2x 10⁷ cycles
Compatible components	Miniature relay, REL-MR-G 24/1
With components	yes

Insulation characteristics

Overvoltage category	III
Pollution degree	2

Electrical properties

Rated Insulation Voltage	260 V AC
Rated surge voltage	2.5 kV (Basic insulation between output contact current paths)
Rated surge voltage	4 kV (Basic insulation between input circuit and output contact current paths)

Supported controller SIEMENS S7-1500

Suitable I/O card	6ES7522-1BH00-0AB0
Suitable I/O card	6ES7522-1BH01-0AB0
Suitable I/O card	6ES7522-1BL00-0AB0
Suitable I/O card	6ES7522-1BL01-0AB0
Suitable I/O card	6ES7522-1BP00-0AA0

Supported controller ABB S800 I/O

Suitable I/O card	DO810
Suitable I/O card	DO840

Supported controller ALLEN-BRADLEY ControlLogix

Suitable I/O card	1756-OB32
Suitable I/O card	1756-OB16E

Supported controller ALLEN-BRADLEY PLC 5

Suitable I/O card

1771 OBN

Supported controller ALLEN-BRADLEY SLC 500

Suitable I/O card

1746 OB 32

Supported controller EMERSON DeltaV

Suitable I/O card	VE4002S1T1B3
Suitable I/O card	VE4002S1T2B3
Suitable I/O card	VE4002S1T2B3 Series 2
Suitable I/O card	VE4002S1T2B6

Supported controller GE-FANUC RX3i

Suitable I/O card

IC694MDL754

Supported controller HONEYWELL Experion PKS C200

Suitable I/O card

TC-ODD 321

Supported controller MITSUBISHI MELSEC L

Suitable I/O card	LY41PT1P
Suitable I/O card	LY42PT1P

Supported controller MITSUBISHI MELSEC Q

Suitable I/O card	QY81P
Suitable I/O card	QY82P

Supported controller SIEMENS S7-300 / ET 200 M

Suitable I/O card	CPU 313C-2DP
Suitable I/O card	CPU 314C-2DP
Suitable I/O card	CPU 314C-2PtP
Suitable I/O card	6ES7322-1BH01-0AA0
Suitable I/O card	6ES7322-1BL00-0AA0
Suitable I/O card	6ES7323-1BH01-0AA0
Suitable I/O card	6ES7323-1BL00-0AA0
Suitable I/O card	CPU 313C
Suitable I/O card	CPU 313C-2PtP

Supported controller SIEMENS S7-400

Suitable I/O card	6ES7422-1BL00-0AA0
Suitable I/O card	6ES7422-7BL00-0AB0

Input data

Nominal input voltage U_N	24 V DC
Input voltage range in reference to U_N	0.8 ... 1.1
Input voltage range	19.2 V DC ... 26.4 V DC
Typical input current at U_N	6.5 mA
Typical response time	5 ms
Typical release time	15 ms
Protective circuit	Freewheeling diode; Freewheeling diode
Protective circuit	Reverse polarity protection; Polarity protection diode
Operating voltage display	Green LED
Status display/channel	Yellow LED

Output data

Compatible components

Miniature relay, REL-MR-G 24/1

Switching

Contact switching type	1 N/O contact
Type of switch contact	Double contact
Contact Material	AgNi, 5 µm hard gold-plated
Maximum Switching Voltage	250 V AC
Maximum Switching Voltage	125 V DC
Minimum Switching Voltage	5 V
Limiting Continuous Current	3 A
Maximum Inrush Current	5 A
Min. switching current	1 mA
Interrupting rating (ohmic load) max.	72 W (24 V DC)
Interrupting rating (ohmic load) max.	60 W (48 V DC)
Interrupting rating (ohmic load) max.	50 W (60 V DC)
Interrupting rating (ohmic load) max.	50 W (110 V DC)
Interrupting rating (ohmic load) max.	750 VA (250 V AC)
Error detection (line break / short-circuit)	no

Controller level

Connection Method	IDC/FLK pin strip
Number of Connections	1
Number of Positions	14
Pitch	2.54 mm

Field level

Connection Method	Screw connection
Stripping length	6 mm
Screw thread	M3
Number of Connections	16
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 14

Supply

Connection Method	Screw connection
Stripping length	6 mm
Screw thread	M3
Number of Connections	1
Number of Positions	2
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 14

Signaling

Status display present

Yes

Dimensions

Width	56.5 mm
Height	77 mm
Depth	52.5 mm

Material specifications

Color

green (RAL 6021)

Ambient conditions

Degree of Protection	IP00
Ambient Temperature (Operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and Regulations

Standards/regulations	EN 61010-2-201
Standards/regulations	IEC 60664

Mounting

Mounting Type	DIN rail mounting
Assembly instructions	in rows with zero spacing
Mounting Position	any

Notes

Notes on operation	Observe the maximum switching capacity of the relays used
Notes on operation	Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
Notes on operation	The outputs are not suitable for switching different line conductors. The sum of the switching voltages used for adjacent outputs must not exceed the rated insulation voltage value
Notes on operation	The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates).
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
