2976116
Official DistributorSKU
PHX2976116
MPN
UMK- 8 RELS/KSR-G24/1/NPE/PLC
Weight
0.237 kg
Series UMK
UMK- 8 RELS/KSR-G24/1/NPE/PLC - Active module

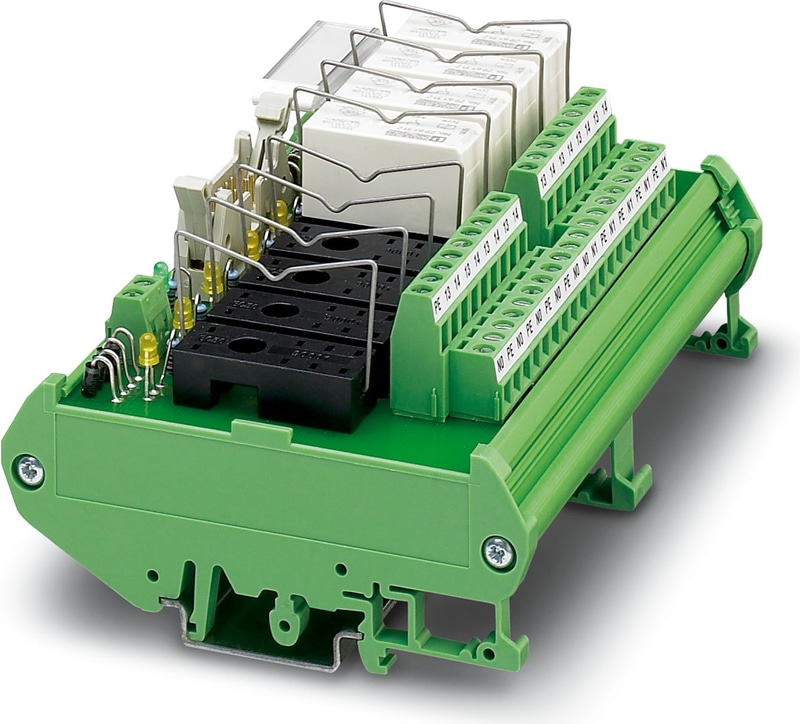

VARIOFACE output module, with plug-in bases for 8 miniature relays, 1 changeover contact each, for 24 V DC (without relays), with additional N and PE connection terminal blocks
Technical Specifications
Product properties
| No. of channels | 8 |
| Compatible components | Miniature relay, REL-MR- 24DC/21HC |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7422-1BL00-0AA0 |
| Suitable I/O card | 6ES7422-7BL00-0AB0 |
Supported controller GE-FANUC 90-30
| Suitable I/O card | IC693 MDL732 |
| Suitable I/O card | IC693 MDL740 |
| Suitable I/O card | IC693 MDL742 |
Supported controller ALLEN-BRADLEY ControlLogix
| Suitable I/O card | 1756-OB32 |
| Suitable I/O card | 1756-OB16E |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771 OBN |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 OB16 |
| Suitable I/O card | 1746 OB 32 |
Supported controller HONEYWELL Experion PKS C200
| Suitable I/O card | TC-ODD 321 |
Supported controller MITSUBISHI MELSEC Q
| Suitable I/O card | QY81P |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7322-1BH01-0AA0 |
| Suitable I/O card | 6ES7322-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BH01-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2PtP |
Supported controller GE-FANUC RX3i
| Suitable I/O card | IC694MDL754 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Typical input current at UN | 2 mA (Light indicator) |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature relay, REL-MR- 24DC/21HC |
Switching
| Contact switching type | Single contact, 1 N/O contact |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
| Maximum total current (N) | 7 A |
| Error detection (line break / short-circuit) | no |
Contact side
| Connection Method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Number of Connections | 36 |
| Number of Positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Coil side
| Connection Method | Flat-ribbon cable connector in acc. with IEC 60603-13 |
| Number of Connections | 1 |
| Number of Positions | 14 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 135 mm |
| Height | 90 mm |
| Depth | 68 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
