Official DistributorSKU
MPN
UMK- 8 RM/KSR-G 24/21/PLC
Weight
0.38 kg
Series UMK

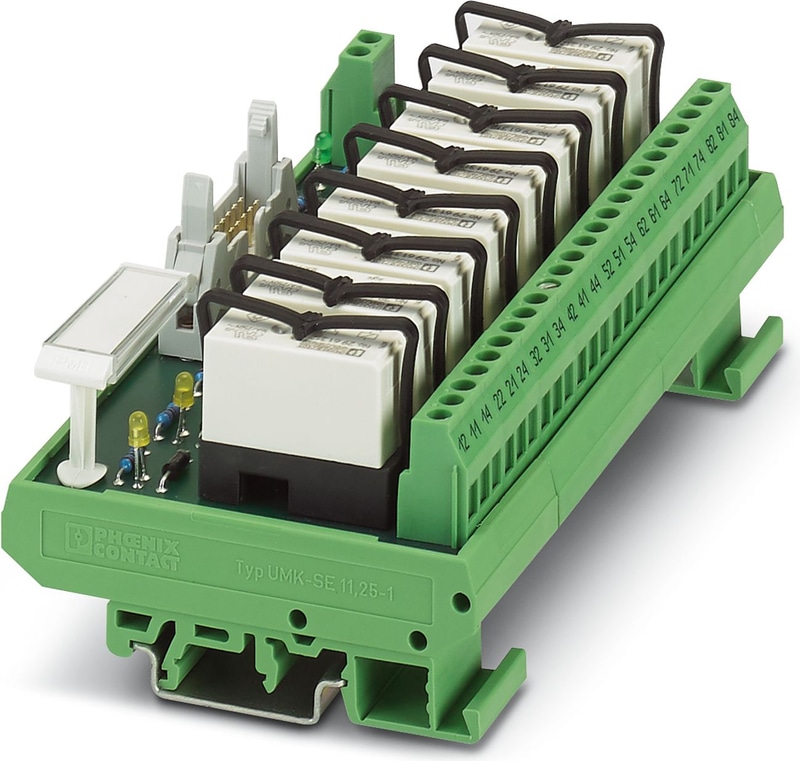

UMK- 8 RM/KSR-G 24/21/PLC - Active module
VARIOFACE output module, with 8 miniature relays, 1 changeover contact each, plugged, for 24 V DC (including relays)
- LED status indicator per signal path and supply voltage
- Freewheeling and polarity protection diode for each signal path
- Plug-in miniature relays, each with a changeover contact
Technical Specifications
Product properties
| No. of channels | 8 |
| Operating mode | 100% operating factor |
| Mechanical service life | 3x 10⁷ cycles |
| Compatible components | Miniature relay, REL-MR- 24DC/21HC |
| With components | yes |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Rated Insulation Voltage | 300 V AC |
| Rated surge voltage | 4 kV (Basic insulation between output contact current paths) |
| Rated surge voltage | 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) |
Supported controller SIEMENS S7-1500
| Suitable I/O card | 6ES7522-1BH00-0AB0 |
| Suitable I/O card | 6ES7522-1BH01-0AB0 |
| Suitable I/O card | 6ES7522-1BL00-0AB0 |
| Suitable I/O card | 6ES7522-1BL01-0AB0 |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7322-1BH01-0AA0 |
| Suitable I/O card | 6ES7322-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BH01-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2PtP |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7422-1BL00-0AA0 |
| Suitable I/O card | 6ES7422-7BL00-0AB0 |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771 OBN |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 OB 32 |
Supported controller ABB S800 I/O
| Suitable I/O card | DO810 |
| Suitable I/O card | DO840 |
Supported controller EMERSON DeltaV
| Suitable I/O card | VE4002S1T1B3 |
| Suitable I/O card | VE4002S1T2B3 |
| Suitable I/O card | VE4002S1T2B3 Series 2 |
| Suitable I/O card | VE4002S1T2B6 |
Supported controller GE-FANUC RX3i
| Suitable I/O card | IC694MDL754 |
Supported controller HONEYWELL Experion PKS C200
| Suitable I/O card | TC-ODD 321 |
Supported controller MITSUBISHI MELSEC L
| Suitable I/O card | LY41PT1P |
| Suitable I/O card | LY42PT1P |
| Suitable I/O card | QY82P |
Supported controller MITSUBISHI MELSEC Q
| Suitable I/O card | QY81P |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Typical input current at UN | 23 mA |
| Typical response time | 9 ms |
| Typical release time | 10 ms |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature relay, REL-MR- 24DC/21HC |
Switching
| Contact switching type | 1 changeover contact |
| Contact Material | AgCdO |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
| Maximum Inrush Current | 6 A |
| Min. switching current | 10 mA |
| Interrupting rating (ohmic load) max. | 120 W (24 V DC, τ = 0 ms) |
| Interrupting rating (ohmic load) max. | 58 W (48 V DC, τ = 0 ms) |
| Interrupting rating (ohmic load) max. | 48 W (60 V, τ = 0 ms) |
| Interrupting rating (ohmic load) max. | 50 W (110 V DC, τ = 0 ms) |
| Interrupting rating (ohmic load) max. | 80 W (220 V DC, τ = 0 ms) |
| Interrupting rating (ohmic load) max. | 1250 VA (250 V AC, τ = 0 ms) |
Controller level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 14 |
| Pitch | 2.54 mm |
Field level
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 24 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Supply
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 2 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 135 mm |
| Height | 77 mm |
| Depth | 54 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | EN 61010-2-201 |
| Standards/regulations | IEC 60664 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | Observe the maximum switching capacity of the relays used |
| Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
| Notes on operation | The outputs are not suitable for switching different line conductors. The sum of the switching voltages used for adjacent outputs must not exceed the rated insulation voltage value |
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
