The figure shows a version for 8 pluggable miniature switching relays or miniature optocouplers
Official DistributorSKU
MPN
UMK- 8 RELS/KSR-G24/1/N/PE
Weight
0.239 kg
Series UMK
UMK- 8 RELS/KSR-G24/1/N/PE - Active module

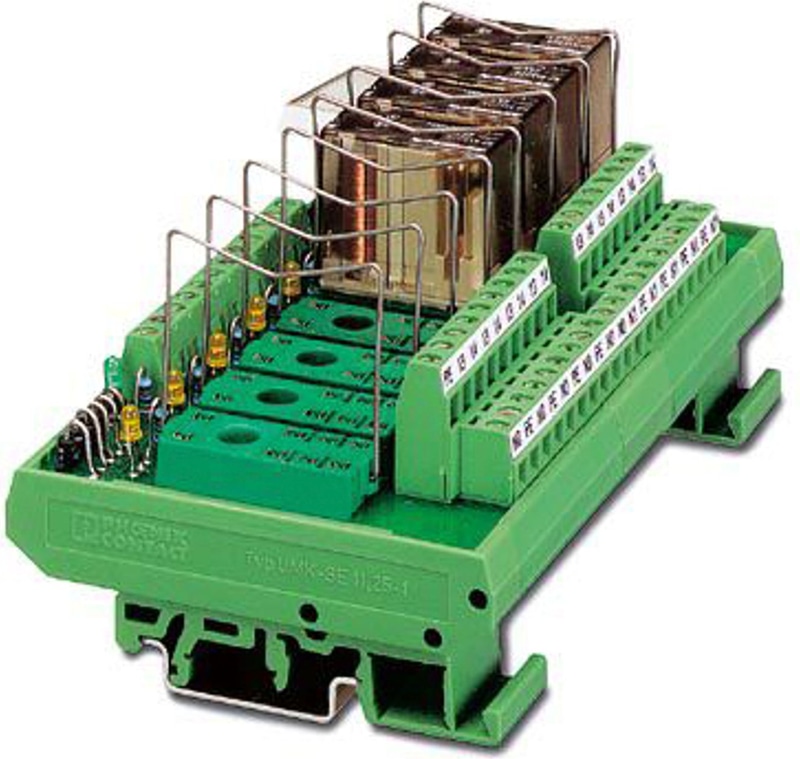

VARIOFACE output module, with plug-in sockets for 8 miniature switching relays, with light indicator and additional N and PE connection terminal blocks
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| No. of channels | 8 |
| Compatible components | Miniature switching relays or miniature optocouplers |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature switching relays or miniature optocouplers |
Switching
| Contact switching type | 1 changeover contact |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
| Maximum total current (N) | 7 A |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Number of Connections | 1 |
| Number of Positions | 12 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Output
| Connection Method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Number of Connections | 36 |
| Number of Positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 135 mm |
| Height | 77 mm |
| Depth | 59 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Mounting Position | any |
