Official DistributorSKU
MPN
UMK- 8 RELS/KSR-230AC/I/PLC
Weight
0.228 kg
Series UMK

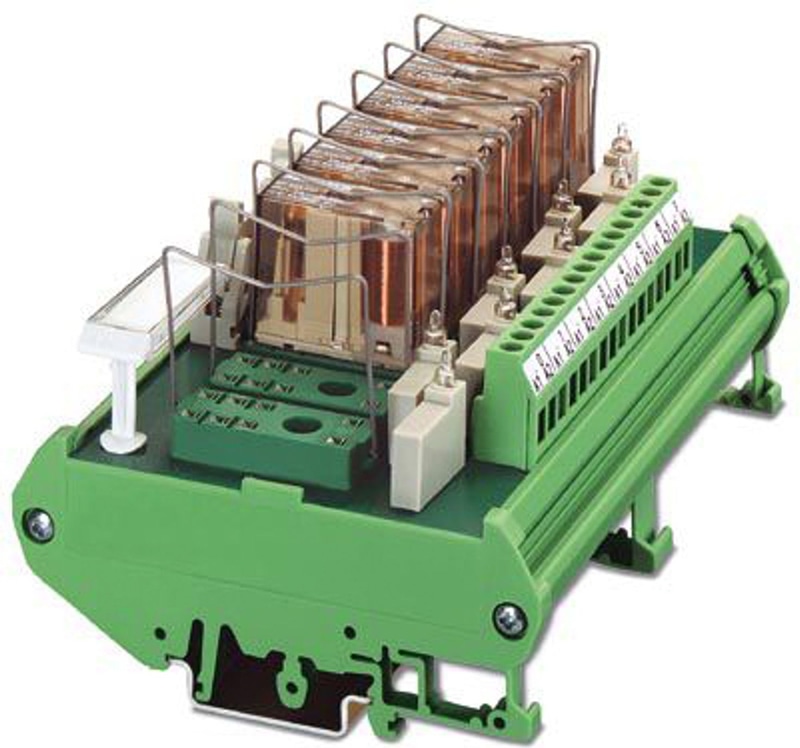

UMK- 8 RELS/KSR-230AC/I/PLC - Active module
VARIOFACE input module, with plug-in sockets for 8 miniature switching relays or miniature optical couplers for 230 V AC
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| No. of channels | 8 |
| Compatible components | Miniature switching relays or miniature optocouplers |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7421-1BL01-0AA0 |
Supported controller GE-FANUC 90-30
| Suitable I/O card | IC693 MDL241 |
| Suitable I/O card | IC693 MDL634 |
| Suitable I/O card | IC693 MDL645 |
| Suitable I/O card | IC693 MDL646 |
Supported controller ALLEN-BRADLEY ControlLogix
| Suitable I/O card | 1756-IB32 |
| Suitable I/O card | 1756-IB16 |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771 IBN |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 IB16 |
| Suitable I/O card | 1746 ITB16 |
| Suitable I/O card | 1746 IN16 |
| Suitable I/O card | 1746 IB 32 |
Supported controller HONEYWELL Experion PKS C200
| Suitable I/O card | TC-IDD 321 |
Supported controller MITSUBISHI MELSEC Q
| Suitable I/O card | QX81 |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7321-1BH02-0AA0 |
| Suitable I/O card | 6ES7321-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BH01-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | 6ES7321-1BH10-0AA0 |
| Suitable I/O card | 6ES7322-1BH10-0AA0 |
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2PtP |
Input data
| Nominal input voltage UN | 230 V AC |
| Input voltage range in reference to UN | 0.4 ... 1.1 |
| Input voltage range | 92 V AC ... 253 V AC |
| Typical input current at UN | 0.5 mA (Light indicator) |
| Operating voltage display | Green LED |
| Status display/channel | Glow lamp |
Output data
| Compatible components | Miniature switching relays or miniature optocouplers |
Switching
| Contact switching type | 1 N/O contact |
| Maximum Switching Voltage | 24 V DC |
| Maximum Switching Voltage | 30 V DC |
| Limiting Continuous Current | 0.5 A |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Flat-ribbon cable connector in acc. with IEC 60603-13 |
| Number of Connections | 1 |
| Number of Positions | 14 |
Output
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 18 |
| Number of Positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 135 mm |
| Height | 90 mm |
| Depth | 68 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN VDE 0110 |
| Standards/regulations | DIN VDE 0160 (in parts) |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Why Proax for Phoenix Contact 2974943?
Proax is an authorized distributor of Phoenix Contact 2974943 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
