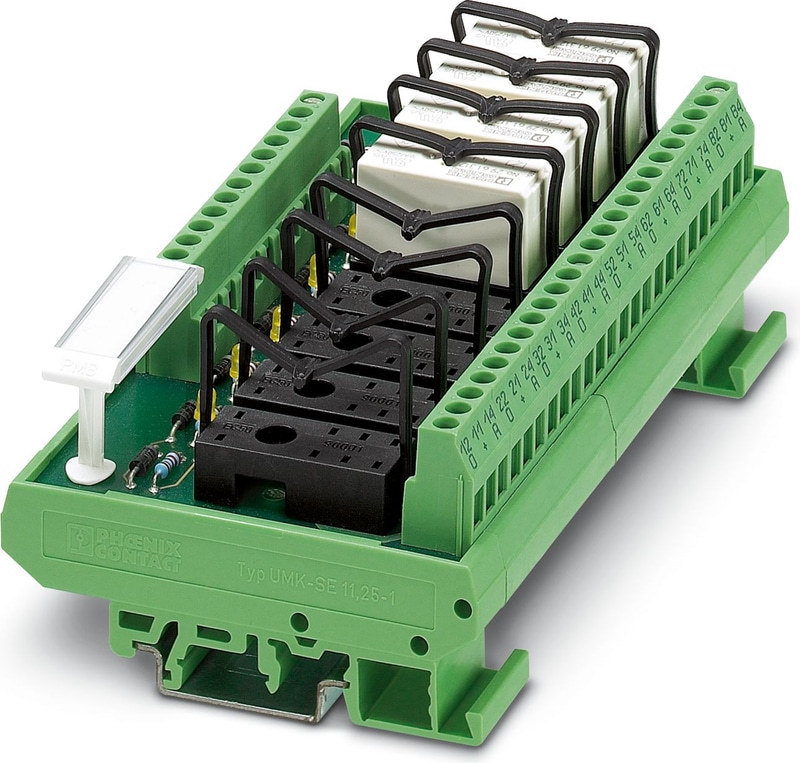

The figure shows a version for 8 pluggable miniature switching relays or miniature optocouplers
Official DistributorSKU
MPN
UMK- 8 RM 5DC/MKDS
Weight
0.256 kg
Series UMK
UMK- 8 RM 5DC/MKDS - Multiple relay module
VARIOFACE module, for 8 plug-in miniature relays or miniature optocouplers, with LED, 5 V DC input voltage
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| No. of channels | 8 |
| Compatible components | Miniature relays or miniature optocouplers |
| With components | no |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Rated Insulation Voltage | 260 V AC |
| Rated surge voltage | 4 kV (Basic insulation between output contact current paths) |
| Rated surge voltage | 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) |
Input data
| Nominal input voltage UN | 5 V DC ±10 % |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Yellow LED |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Miniature relays or miniature optocouplers |
Switching
| Contact switching type | 1 changeover contact |
| Maximum Switching Voltage | 250 V AC |
| Limiting Continuous Current | 5 A |
| Interrupting rating (ohmic load) max. | 1250 VA (for 250 V AC) |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 1 |
| Number of Positions | 12 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Output
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 24 |
| Number of Positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 135 mm |
| Height | 77 mm |
| Depth | 59 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
| Standards/regulations | IEC 60664 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
