Series UMK

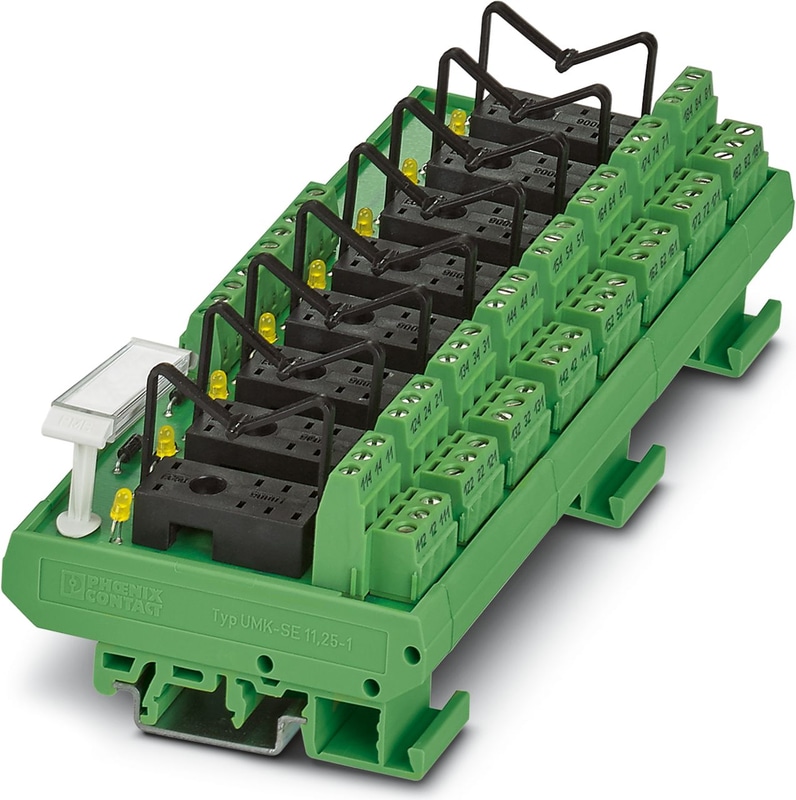

UMK- 8 RELS/KSR-24/21/21 - Multiple relay module
VARIOFACE module, with plug-in bases for 8 miniature relays with 2 changeover contacts, with LED display
Technical Specifications
Utilization restriction
EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
No. of channels | 8 |
Compatible components | Miniature relays or miniature optocouplers |
With components | no |
Insulation characteristics
Overvoltage category | III |
Pollution degree | 2 |
Input data
Nominal input voltage UN | 24 V DC ±10 % |
Input voltage range in reference to UN | 0.9 ... 1.1 |
Protective circuit | Freewheeling diode; Freewheeling diode |
Protective circuit | Reverse polarity protection; Polarity protection diode |
Status display/channel | Yellow LED |
Output data
Compatible components | Miniature relays or miniature optocouplers |
Switching
Contact switching type | 2 changeover contacts |
Maximum Switching Voltage | 250 V AC |
Limiting Continuous Current | 5 A |
Error detection (line break / short-circuit) | no |
Input
Connection Method | Screw connection |
Stripping length | 6 mm |
Screw thread | M3 |
Number of Connections | 1 |
Number of Positions | 10 |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Output
Connection Method | Screw connection |
Stripping length | 6 mm |
Screw thread | M3 |
Number of Connections | 48 |
Number of Positions | 6 |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Signaling
Status display present | Yes |
Dimensions
Width | 168.8 mm |
Height | 77 mm |
Depth | 59 mm |
Material specifications
Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
Ambient Temperature (Operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
Standards/regulations | DIN VDE 0110 |
Mounting
Mounting Type | DIN rail mounting |
Mounting Position | any |
Accessories
