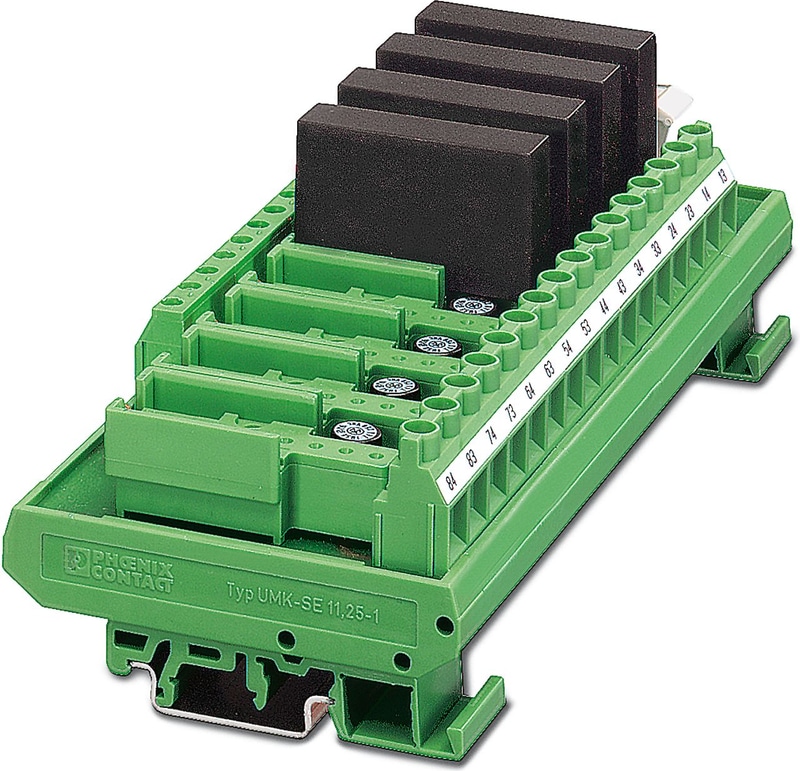

UMK- 8 OM/MF/MKDS - Optocoupler module
Interface module, with plug-in socket for 8 digital I/O modules, with screw connection, with light indicator and fuse, control logic: minus switching
- Status indicator
- Integrated fuse for line protection
- Can be fitted with solid-state relays or I/O modules
Technical Specifications
Product properties
| No. of channels | 8 |
| Compatible components | Digital I/O modules |
| With components | no |
Input data
| Input voltage range | 4 V ... 32 V |
| Typical input current at UN | 30 mA (Optocoupler dependent) |
| Status display/channel | Yellow LED |
Output data
| Compatible components | Digital I/O modules |
Switching
| Limiting Continuous Current | 4 A (Optocoupler dependent) |
| Error detection (line break / short-circuit) | no |
Input
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 2 |
| Number of Positions | 12 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Output
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 16 |
| Number of Positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 180 mm |
| Height | 77 mm |
| Depth | 72 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| Standards/regulations | DIN VDE 0160 (in relevant parts) |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
