2976420
Official DistributorSKU
PHX2976420
MPN
UMK- 8 OM/AMSC/PLC
Weight
0.23 kg
Series UMK

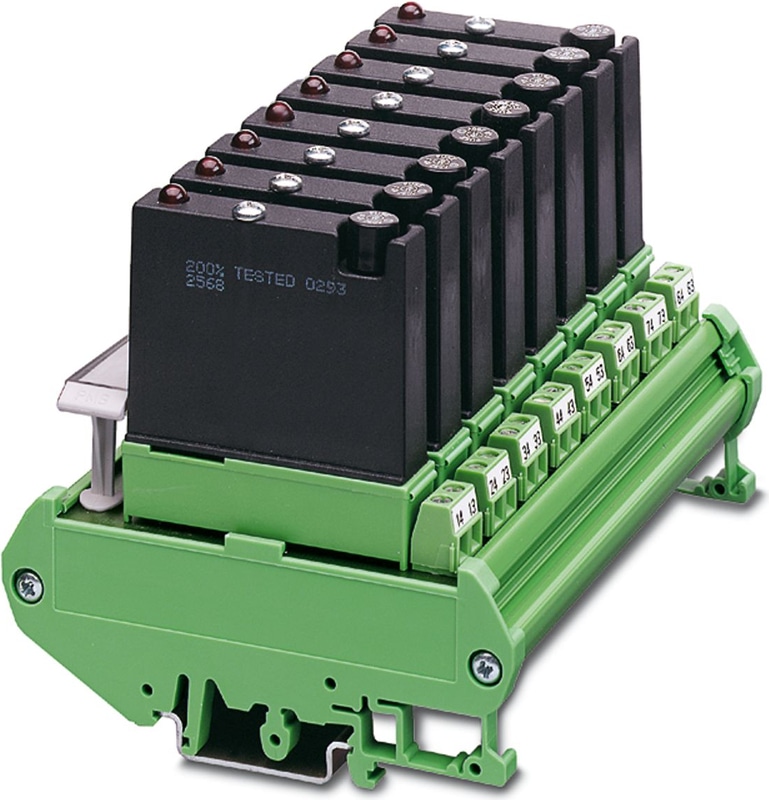

UMK- 8 OM/AMSC/PLC - Active module
VARIOFACE output module, for 8 channels, with plug-in sockets for Generation 4 solid-state relays from OPTO 22
Technical Specifications
Product properties
| No. of channels | 8 |
| Compatible components | Solid-state relay, Generation 4 from OPTO 22 |
| With components | no |
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
Electrical properties
| Rated surge voltage | 1.2 kV |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7422-1BL00-0AA0 |
| Suitable I/O card | 6ES7422-7BL00-0AB0 |
Supported controller GE-FANUC 90-30
| Suitable I/O card | IC693 MDL732 |
| Suitable I/O card | IC693 MDL740 |
| Suitable I/O card | IC693 MDL742 |
Supported controller ALLEN-BRADLEY ControlLogix
| Suitable I/O card | 1756-OB32 |
| Suitable I/O card | 1756-OB16E |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771 OBN |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 OB16 |
| Suitable I/O card | 1746 OB 32 |
Supported controller HONEYWELL Experion PKS C200
| Suitable I/O card | TC-ODD 321 |
Supported controller MITSUBISHI MELSEC Q
| Suitable I/O card | QY81P |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7322-1BH01-0AA0 |
| Suitable I/O card | 6ES7322-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BH01-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2PtP |
Supported controller ABB S800 I/O
| Suitable I/O card | DO810 |
| Suitable I/O card | DO840 |
Supported controller GE-FANUC RX3i
| Suitable I/O card | IC694MDL754 |
Input data
| Nominal input voltage UN | 24 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Green LED |
Output data
| Compatible components | Solid-state relay, Generation 4 from OPTO 22 |
Switching
| Contact switching type | 1 N/O contact |
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 6 A |
| Nominal Supply Voltage | 250 V AC/DC (data is module-specific) |
| Continuous load current | 6 A |
| Error detection (line break / short-circuit) | no |
Field level
| Connection Method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Number of Connections | 18 |
| Number of Positions | 2 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Controller level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 14 |
| Pitch | 2.54 mm |
Signaling
| Status display present | Yes |
Dimensions
| Width | 123.5 mm |
| Height | 90 mm |
| Depth | 87 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2976420?
Proax is an authorized distributor of Phoenix Contact 2976420 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
