2702337
Official DistributorSKU
PHX2702337
MPN
PLD E 400-DS-MS/1,0-FS/0,6
Weight
0.145 kg
Series PLD-E

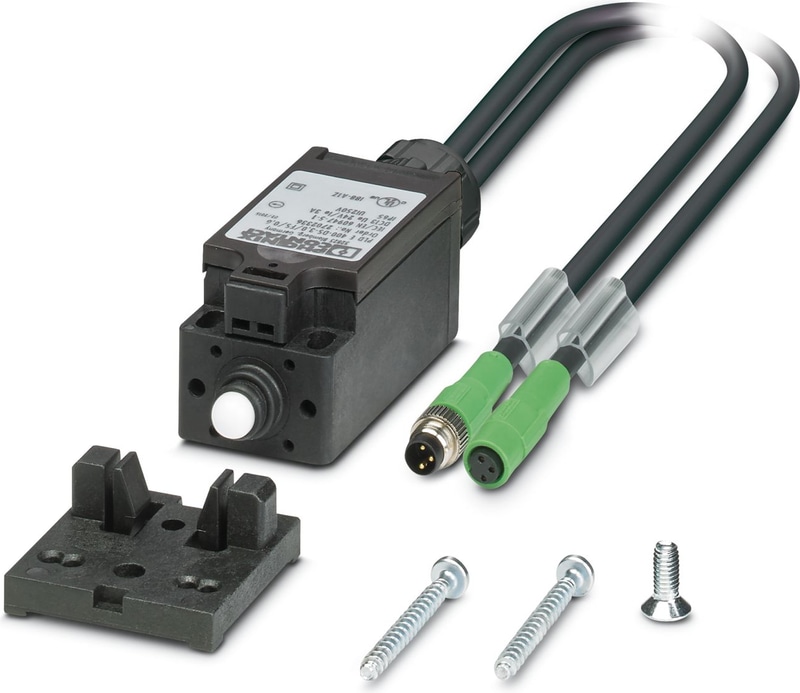

PLD E 400-DS-MS/1,0-FS/0,6 - Door position switch
Door position switch with 1 m cable with M8 plug and 0.6 m cable with M8 socket (Snap-in), including mounting accessories
Documents
Technical Specifications
Product properties
| Mounting Position | any |
| Mechanical service life | 10x 10⁶ cycles |
Electrical properties
| Rated voltage | 24 V DC |
| Rated current | 3 A |
Dimensions
| Width | 31 mm |
| Height | 30.5 mm |
| Depth | 98.3 mm |
| Note on dimensions | Without connected cables |
Material specifications
| Color | black |
| Material | Thermoplastic, fiber-reinforced |
| Material | PUR |
Ambient conditions
| Degree of Protection | IP54 |
| Ambient Temperature (Operation) | -30 °C ... 80 °C |
Standards and Regulations
| Protection class | II |
Mounting
| Mounting Position | any |
Accessories
Why Proax for Phoenix Contact 2702337?
Proax is an authorized distributor of Phoenix Contact 2702337 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
