SKU
MPN
PLD E 608-CA-MS/1,0/FS AM
Weight
0.131 kg
Series PLD-E

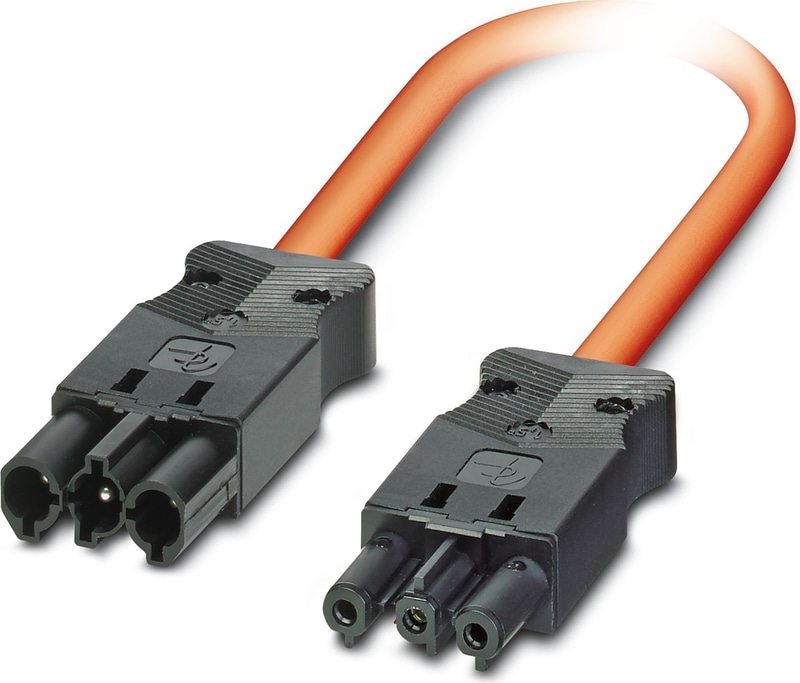

PLD E 608-CA-MS/1,0/FS AM - Power cable
Power cable, 3-position, PVC, orange RAL 2004, cable length: 1 m
Technical Specifications
Product properties
Application | Enclosure lights |
Number of Positions | 3 |
No. of cable outlets | 1 |
Shielded | no |
Material specifications
Material for screw connection | not available |
Outer sheath, material | PVC |
Conductor material | Bare Cu litz wires |
Electrical properties
Nominal voltage UN | 250 V AC |
Nominal current IN | 16 A |
Mechanical data
Insertion/withdrawal cycles | 100 |
Connection 1
Head design | Plug |
Head cable outlet | straight |
Coding | black |
Connection 2
Head design | Socket |
Head cable outlet | straight |
Coding | black |
Cable/line
Cable Length | 1 m |
H05VV-F3G [PVC]
Number of Positions | 3 |
Shielded | no |
Cable Type | H05VV-F3G [PVC] |
AWG Signal Line | 16 |
Wire diameter incl. insulation | 2.7 mm |
External Cable Diameter | 7.80 mm |
Outer sheath, material | PVC |
External sheath, color | orange RAL 2004 |
Conductor material | Bare Cu litz wires |
Material wire insulation | PVC TI2 |
Smallest bending radius, fixed installation | 40 mm |
Ambient conditions
Degree of Protection | IP20 |
Degree of Protection | IP40 (plugged in) |
Ambient Temperature (Operation) | -5 °C ... 40 °C |
Accessories
Why Proax for Phoenix Contact 2702304?
Proax is an authorized distributor of Phoenix Contact 2702304 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size | 1 |
