Official DistributorSKU
MPN
PLD E 608-CO-MS
Weight
0.019 kg
Series PLD-E

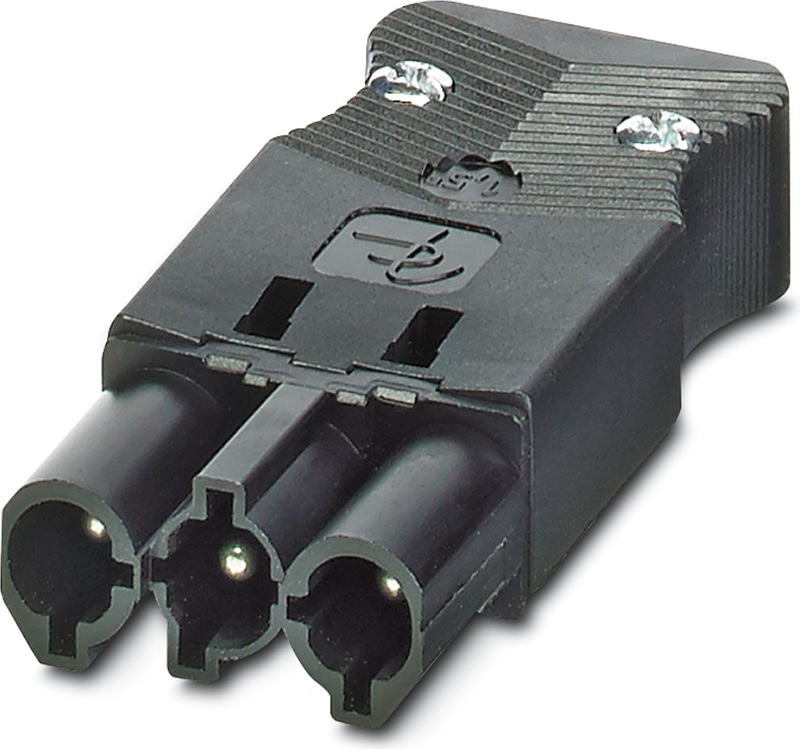

PLD E 608-CO-MS - Connector
Connector for series connection, black, 3-pos.
Technical Specifications
Product properties
| Type | Installation coupler |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| Number of Connections | 3 |
Insulation characteristics
| Degree of pollution | 2 |
Electrical properties
| Rated surge voltage (II/2) | 4 kV |
| Rated current | 16 A (in accordance with EN 61984 at 70°C) |
| Rated voltage (I/2) | 250 V |
Connection technology
| Connection Method | Screw connection |
| Frequency of connections between conductors of the same cross section | 5 (in accordance with EN 61984) |
Conductor connection
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Tightening torque contact carrier | 0.3 Nm |
Dimensions
| Width | 28 mm |
| Height | 12.6 mm |
| Length | 68.2 mm |
Material specifications
| Material Housing | PA |
| Flammability rating according to UL 94 | V2 |
| Housing Material | Polyamide (PA 6.6) |
| Housing surface material | uncoated |
| Contact Material | Brass |
| Contact surface material | surface-protected |
| Contact carrier material | PA |
Cable/line
| External Cable Diameter | 7.5 mm ... 8.5 mm (3x 1.5 mm²) |
| External Cable Diameter | 9.5 mm ... 10.5 mm (3x 2.5 mm²) |
| Stripping length of the individual wire | 7 mm |
Mechanical data
| Insertion/withdrawal cycles | 10 (in accordance with EN 61984) |
Ambient conditions
| Degree of protection (when plugged in) | IP40 (plugged in) |
| Degree of Protection | IP20 |
| Degree of Protection | IP40 (plugged in) |
| Ambient Temperature (Operation) | 70 °C |
| Ambient temperature (storage/transport) | -30 °C |
Mounting
| Mounting Type | Plug-in mounting |
Why Proax for Phoenix Contact 2702308?
Proax is an authorized distributor of Phoenix Contact 2702308 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
