Official DistributorSKU
MPN
PLD E 400-DS-3,0/0,6
Weight
0.33 kg
Series PLD-E
PLD E 400-DS-3,0/0,6 - Door position switch

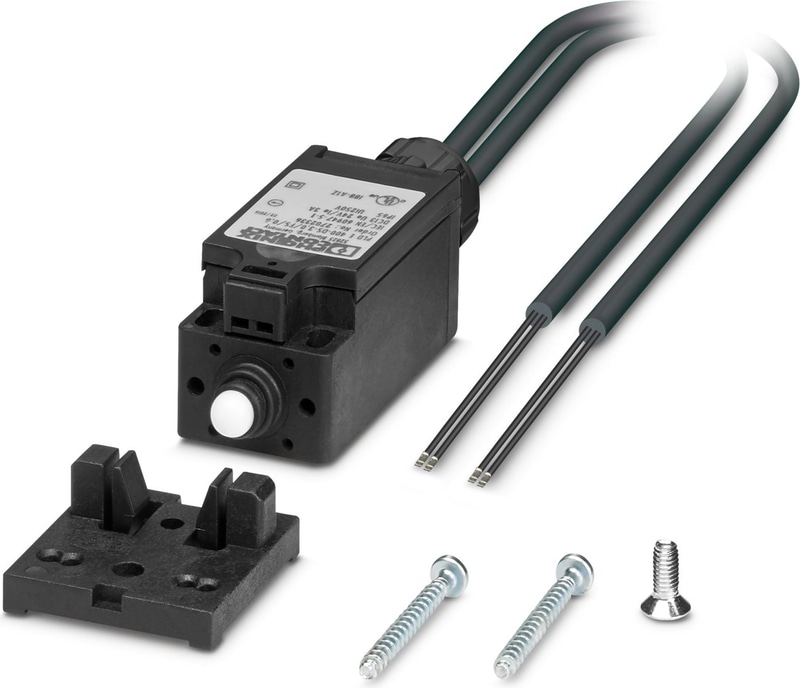

Door position switch with 3 m cable with open cable end and 0.6 m cable with open cable end, including mounting accessories
Documents
Technical Specifications
Note on application
| Note on application | Only for industrial use |
Insulation characteristics
| Protection class | II (protective insulation) |
Insulation characteristics: Device class (built-in switch)
| Overvoltage category | II (EN 60947-1) |
| Pollution degree | 3 (Built-in switch) |
Electrical properties
| Short-circuit current | 400 A (conditional rated short-circuit current) |
| Protective circuit | Short-circuit protection; Fuse, 4 A gG |
Device class (built-in switch)
| Rated surge voltage | 4 kV |
Dimensions
| Width | 31 mm |
| Height | 30.5 mm |
| Depth | 98.3 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Thermoplastic, fiberglass-reinforced |
Ambient conditions
| Degree of Protection | IP67 in acc. with IEC 60529 (only applies with closed cover) |
| Ambient Temperature (Operation) | -30 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Device class (built-in switch)
| Standards/regulations | IEC 60947-1 |
| Standard designation | Category E (MC3+CC2+SC1) |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 1318672?
Proax is an authorized distributor of Phoenix Contact 1318672 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
